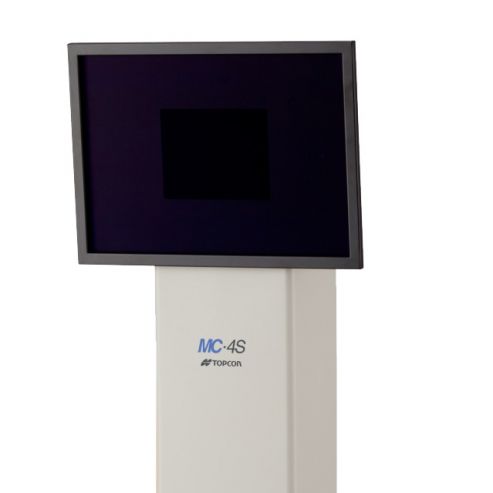

Topcon MC-4S Mirror Chart
The MC-4S 3D Mirror Chart allows you to maximize your exam space. It simulates a full 20 ft. lane in a 2'-5' range, allowing for use in very small refraction areas. The MC-4S features a high resolution, polarized LCD display that includes all common visual acuity charts as well as the ability to customize refraction programs and show 3D movies or the effects of polarization on a patient's glasses. The addition of virtual content enables the operator to test visual performance in real life situations. The MC-4S can be linked to Topcon's CV-5000S Vision Tester and EXAM-5000 Refraction System through the KB-50 One-Dial Controller. Please note: The MC-4S does not work in stand-alone mode and must be connected to the CV-5000S.
Wide range of optotypes, including pediatric and EDTRS charts
3D images and movies

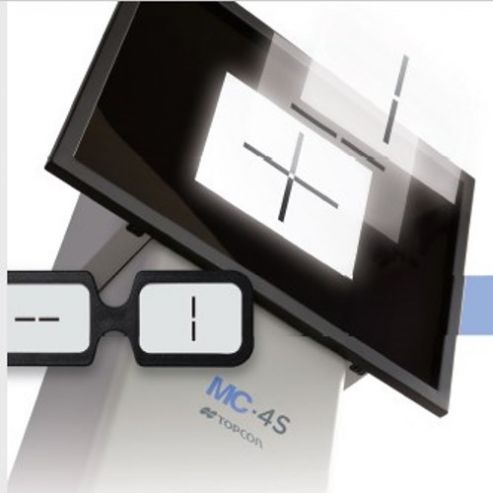

Binocular balance/polarization chart
Full connectivity to the CV-5000S and EXAM-5000 Refraction System through the KB-50S One Dial Controller
Test distance: Equivalent to 5.0m
Test chart: Visual acuity test chart for visual acuity 0.03 - 2.0 * and visual function test chart
Chart display: Charts of one horizontal line, one vertical line, one character, R&G, reversed
B&W are displayed. Contrast is changed. Polarization display is possible.
Filter: Polarized filter
Luminance: 200 ± 20cd/m2
Contrast: 85% or more
Installing distance: 60cm, 80cm or 100cm (from the vertex of the patient to the chart window of the instrument)
Dimensions: 440mm (W) × 339mm (D) × 1330mm (H)
Power supply voltage: AC 100-240V, AC adapter
Frequency: 50-60Hz, AC adapter
Power supply input: 1.5A, AC adapter
