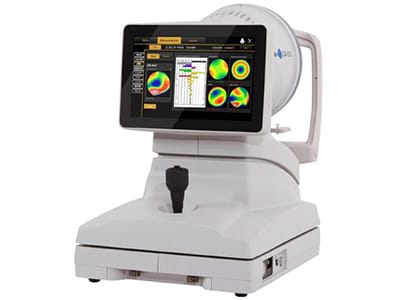

Topcon CA-800 Corneal Analyzer

Contact us for Price & Availability Request a Quote (888) 781-4458

The Topcon CA-800 Corneal Analyzer is a placido-based topographer with 24 rings that measure up to 6,144 data points, providing you with a detailed analysis of the patient. Operation combines a 10” capacitive touch monitor and joystick making assessment of the cornea quick and simple. The CA-800 is equipped with dynamic and static pupillometry, providing clear information on the reaction time of the pupil and the contraction of the pupil.

The compact design of the CA-800 incorporates an internal PC with a 320Gb SATA hard disk for patient database management.

Available:

  • New
Features Specifications Financing
  • Topography Map
  • OD/OS results on the same screen
  • Corneal wavefront (Zernike) analysis
  • Corneal surface height map
  • Comparison and Differential maps
  • Pupillometry
  • Real time fluorescein acquisition and imaging
  • White to white measurement
  • Meibomian glad analysis
  • Contact lens fitting simulation
  • Toric IOL calculation
  • 1” Capacitive touch screen
  • Fully integrated patient database
  • Keratoscope cone: 24 rings equally distributed on a 43D sphere
  •

  • Analyzed points: Over 100.000
  •

  • Measured points: Over 6.200
  •

  • Corneal coverage: Up to 9.8mm on a sphere of radius 8.00mm (42.2 diopters with N=1.3375)
  •

  • Diopter power range: From 1D to 120D
  •

  • Resolution: ,+/- 0.01D, 1 micron
  •

  • Accuracy / Precision axial radius: ,+/- 0.03mm altimetric data +/- 2µm at 4mm
  •

  • Capture system: Auto-focus with Auto-capture
  •

  • Output ports: USB, LAN
  •

  • Monitor: LCD 10.1 inch capacitive touch screen
  •

  • Database: Internal
  •

  • Pupillometry: Dynamic, Photopic, Mesopic, Scotopic
  •

  • Fluorescein: Image, Video
  •

  • Report: Corneal map, Comparison map, Contact lens, Height map, Zernike analysis, pupillometry, Toric IOL , Screenshot
  •

  • Working environment: 10°-40°C, Relative humidity 30-75% (no dewing), Atmospheric pressure 700-1060hPa
  •

  • Power source: AC 100-240V 47-63 Hz
  •

  • Power consumption: <100VA
  •

  • Dimensions: 320mm (W) x 490mm (H) x 470mm (L), 15 Kg
  •

  • Connections: Wi-Fi Optional, LAN integrated
  •

  • Printing options: USB printer, Network printer, PDF on network shared folder, PDF on USB
  •

  • Operating System: Windows 8 Embedded
  •

  • RAM: 2GB
  •

  • Hard Disk: 320 GB SATA Hard Drive (database storage), 32 GB Solid State Drive (operating system and application software
