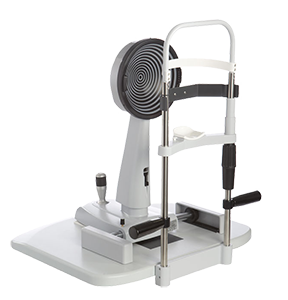

S4Optik Corneal Topographer

Contact us for Price & Availability Request a Quote (888) 781-4458

The S4Optik Corneal Topographer allows acquisition of precise measurements by any technician quickly and easily. Networkable software allows intuitive review and analysis.

  • Corneal Topography - This fully featured Placido disk corneal topographer presents all maps including sagittal and tangential curvatures, standard and advanced elevations, refractive power and gaussian curvature. Additionally, a number of numeric indices are presented including those for shape, Ks, peripheral measurements and asymmetry
  • Cataract Pre-Op Analysis - The S4Optik Topographer measures and presents pupil size, angle kappa, spherical aberration, coma, white to white, astigmatism, and HOA RMS values to allow confident lens decisions.
  • Pathology Detection – Irregularities can be easily identified with the comprehensive map sets and the asymmetry indices measured by the S4Optik Corneal Topographer.
  • Corneal Wavefront - Zernike maps and values are presented as well as corrected vs uncorrected visual simulations for patient education.

Available:

  • New
Features Specifications Financing

Fast, easy data acquisition

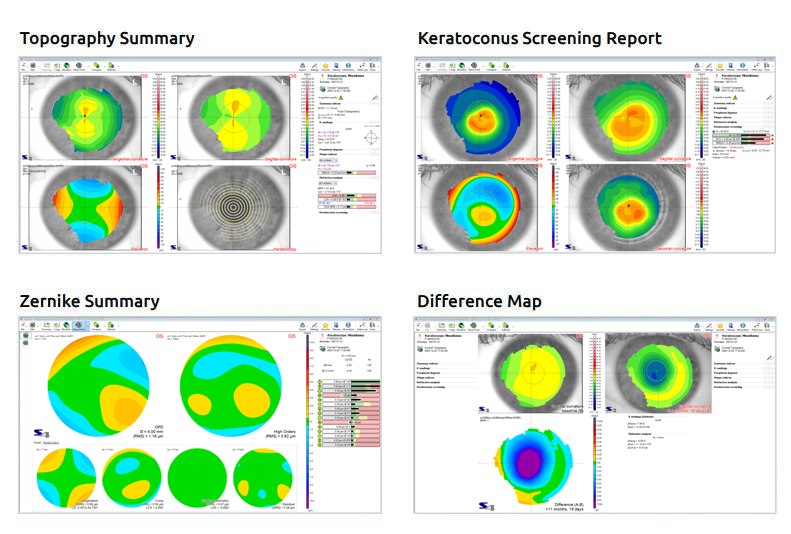

Comprehensive series of map summaries
Ergonomic design
Network connectivity

Data transfer: USB 3.0
Power supply: USB 2.0 5VDC 0,5A
Dimensions (HxDxW): 480 x 315 x 255mm
Weight: 4.5Kg
Chin rest movement: 70mm ± 1mm
Minimum height of the chin cup from table: 24cm
Base movement (xyz): 105 x 110 x 30mm
Working distance: 56mm

LIGHT SOURCES
Placido disk: White LED 400 - 700 nm
Pupillography: LED 940 nm

TOPOGRAPHY
Placido disk rings: 24
Measured points: 6144
Topographic covering: 10mm
Dioptric measurement range: 1D to 100D
Measurement accuracy: Class A according to the UNI EN ISO 19980-2012
Compatibility with standard: DICOM v3 (IHE integration profile EYECARE Workflow)

MINIMUM SYSTEM REQUIREMENT
PC: CPU: I3 or higher ( suggested I5) - CHIP SET: intel - RAM: 4 Gbyte or higher (suggested 8 Gbyte) -
GRAPHIC VIDEO BOARD: 1 Gbyte not shared - RESOLUTION: 1280x960 or higher - USB 3.0 port -
Operating System: Windows 7, 8, 10 (64bit)
