Reichert Sightchek Digital Phoroptor | EMS

Reichert SightChek Digital Phoroptor

Contact us for Price & Availability Request a Quote (888) 781-4458

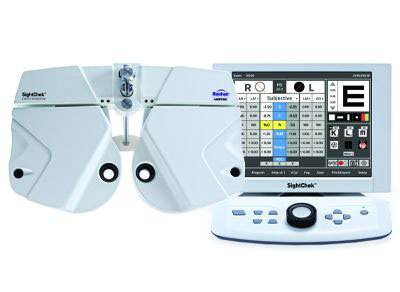

The Reichert SightChek Digital Phoroptor combines the latest in technology, simplicity, and value. The SightChek allows you to quickly and easily perform all the functions of a manual phoroptor while comfortably seated next to your patient. Designed for maximum efficiency, this intuitive instrument features a full range of guided tests and precise refraction readings.


  • New
Features Specifications Financing
  • Full range of programmed tests such as Phoria, Fused Cross Cylinder, and Binocular Balance
  • Near Vision Testing – Automatic convergence, auto-illuminating near vision light source, and a detachable near vision rod and card available
  • Adjusting cylinder power and axis can be completed using the traditional Jackson Cross Cylinder or Split Cross Cylinder for fast, convenient, and accurate astigmatic testing
  • Create your own refraction sequences using up to 3 customizable programs
  • 10-inch tilting touch screen and intuitive user interface
  • Connect multiple SightChek Digital Phoroptors and Reichert pre-test instruments for a completely connected office
  • Able to integrate with EMR systems

16290 SightChek™ Digital Phoroptor® Includes:
16291 SightChek Head Assembly
16292 SightChek Controller
16293 SightChek Relay Box Assembly
Standard Included Accessories:
Dust Cover - Phoroptor Head
Dust Cover - Controller
Cable - Phoroptor Head
Cable - Controller Near Vision Card and Holder
Near Vision Rod
Power Cord 120V or 230V
Face Shield Kit
Thermal Paper
Optional Accessories:
16290-012 Decimal Near Vision Kit
16290-008 Snellen Near Vision Kit
13778 Wireless Dongle Kit Bluetooth connection to AcuityChek, ClearChart 4X, ClearChart 4P
15171 Wireless Dongle Kit Bluetooth connection to LensChek Plus, LensChek Pro, OptoChek Plus
16233 Wireless Dongle Single Bluetooth connection
For cable connection information, please refer to the user’s guide
Refractive Measurement Range:
Sphere Power -28.75D to +27.25 (Step: 0.12D, 0.25D, 0.5D and 1.0D)
Cylinder Power 0D to ±6D (Step: 0.25D, .5D, 1.0D)
Axis Adjustment 1° to 180° (Step: 1, 5, 10)
Cross Cylinder Test ±0.25D, ±.5D, and Split
Prism 0 to 20 per eye (Step: 0.01, 0.5, 1.0)
Corneal Vertex Distance 12, 13.75, 15, and 18 mm
Pupil Distance 45 to 80 mm (Step: 0.5 mm, 1 mm)
Auxillary Lenses: Open Occluder, Red Maddox Rod, Pinhole, 0.25D Xcyl, 0.50D Xcyl, Red/ Green Filters, Dissociation Prisms, Polarization Filters, Split Cylinder, Retinoscopy Lens, Fixed Cross Cylinder, Close Occluder, Fog Lenses, Cross Hair Lens
Phoroptor Head:
Width × Height × Depth 38.5-41.3 x 31.6 x 11.4 cm (15.1-16.2 x 12.4 x 4.5 in)
Weight 5.0 kg (11.0 lbs)
Width × Height × Depth 27.2 x 16.5-20.4 x 29.3 cm (10.7 x 6.5- 8.0 x 11.5 in)
Weight 2.6 kg (5.7 lbs)
Relay Box Assembly:
Width × Height × Depth 32.6 x 10.3 x 11.9 cm (12.8 x 4.0 x 4.7 in)
Weight 2.4 kg (5.3 lbs)
Input Voltage 100 - 240V~ Frequency 50-60 Hz
Current (max.) 90 VA
Fuses T2AL 250V
Ports Inst 1, Inst 2, EMR, Proj, Transfer, Head, Controller
SightChek Assembly in Package:
Width × Height × Depth 46.0 x 47.2 x 64.0 cm (18.1 x 18.6 x 25.2 in)
Weight 16.0 kg (35.3 lbs)
