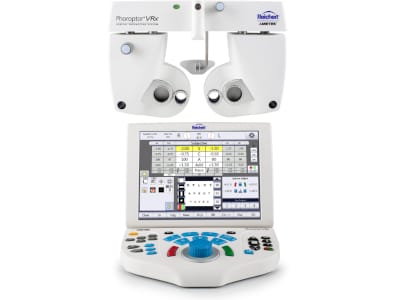

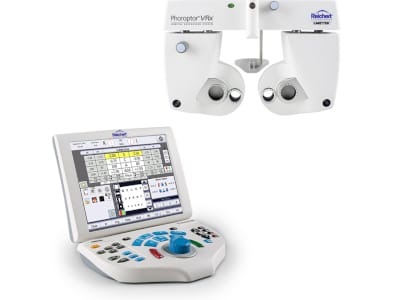

Reichert Phoropter VRx Digital Refraction System

Contact us for Price & Availability Request a Quote (888) 781-4458

Drive practice efficiency and accelerate the exam process. Phoroptor VRx Digital Refraction System easily adapts to your practice, allowing you to rapidly perform all of the functions of a manual Phoroptor, and so much more, while comfortably seated next to your patient.

Phoroptor VRx sets new standards in digital refraction. With the thinnest, most compact design available, incredibly fast lens exchanges, motorized prisms, split cylinder lenses, and ultra-quiet operation, Phoroptor VRx offers an outstanding patient experience.

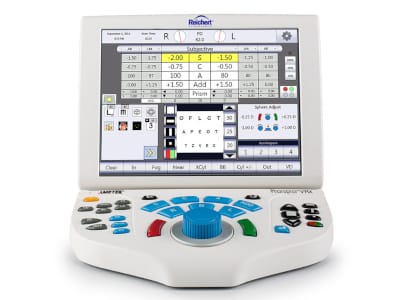

The touchscreen display and ergonomic keypad features a multi-function control knob with unmatched feel and versatility. The intuitive interface has all the pre-programmed and programmable tests you’ll need for an exceptional user experience.

Phoroptor VRx connects to EMR systems as well as numerous models of pre-test and acuity devices from both Reichert and non-Reichert brands, for effortless integration.

Available:

  • New
Features Specifications Financing

Standard Included Accessories:


  • Dust Cover - Phoroptor Head
  • Dust Cover - Controller
  • Phoroptor Cable
  • User’s Guide
  • Decimal Card Holder or Snellen Card Holder
  • Power Cord 115V or Power Cord 230V
  • Card Beam Assembly
  • Card Illuminator
  • Face Shield Kit (2 sets)
  • Quick Reference Card


Optional Accessories:


  • Thermal Printer
  • Wireless Dongle Kit 16250 - Bluetooth connection to ClearChart 3P, AL200
  • Wireless Dongle Kit 16251 - Bluetooth connection to ClearChart 2
  • Wireless Dongle Kit 16253 - Bluetooth connection to AP250, AL700, RK700
  • Wireless Dongle Kit 16254 - Bluetooth connection to RK600
  • Wireless Dongle Kit 16255 - Bluetooth connection to AL500, Computer
  • Wireless Dongle 16233 - Single Bluetooth dongle w/ null modem paring cable

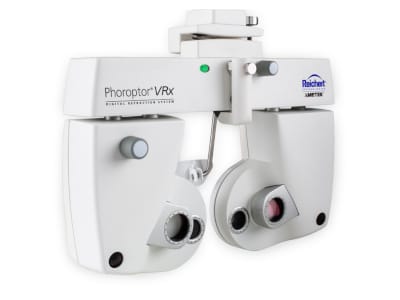

Phoroptor Head:

  • Spherical Effects: +17.75 to -22.25 D
  • Steps: 0.25 and 1.0 D
  • Cylinder Power: -8.0 to +8.0 D
  • Steps: 0.25 and 1.0 D
  • Axis Adjustment: 0° to 180°
  • Steps: 1° and 10°
  • Cross Cylinder Test: ±0.25 D
  •

  • Prismatic Effects (Optional): 0.20 Prism Diopter per eye
  • Steps: 0.50 Prism Diopter per eye 0.25 Prism Diopter per eye
  • Corneal Vertex Distance: 16 mm
  • Pupil Distance: 50 to 80 mm, Steps 1 mm binocular
  • Convergence: 400 mm
  • Height Level of Eyes, adjustment: ±3 mm
  • Leveling: via bubble level
  • Free Aperture: 19 mm
  • Thickness of Housing at the Viewing Aperture: 26 mm
  • Width x Height x Depth (at PD = 64 mm): 31 x 20.3 x 7.1 cm (12.2 x 8 x 2.8 in.)
  • Weight With Mount, Without Prism Compensator: 4.42 kg (9.75 lb)
  • Weight With Mount, With Prism Compensator: 4.65 kg (10.25 lb)
  • Weight Without Mount, Without Prism Compensator: 3.95 kg (8.70 lb)
  • Weight Without Mount, With Prism Compensator: 4.17 kg (9.20 lb)


  • Controller with Display:
  •

  • Controller - Width x Height x Depth: 23.4 x 4.6 x 16.8 cm (9.9 x 1.5 x 6.9 in.)
  • Display - Width x Height x Depth: 22.4 x 15.7 x 1.5 cm (10 x 7 x 2.8 in.)
  • Display Size - Diagonal: 10.4 in. (1024x768 pixel resolution)
  • Weight: 2.9 kg (6.4 lb)
  •

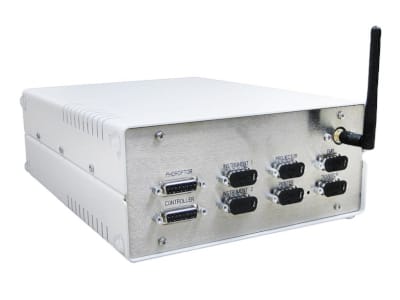

  • Central Unit:
  • Physical Specifications
  • Width x Height x Depth: 20.1 x 8.9 x 26.7 cm (7.9 x 3.5 x 10.5 in.)
  • Weight: 3.2 kg (7.1 lb)
  •

  • Electrical Specifications: Input Voltage: 100 - 240V~
  • Frequency: 50 - 60 Hz
  • Current (max.): 60 VA
  • Fuses: T2AL 250V
  • Ports (1 each): Phoroptor
  • Controller (Keypad): Projector (Acuity System)
  • Printer: Instrument 1 I/O, Instrument 2 I/O
  • EMR Port: Transfer Port
  •
    Device Compatibility
    As of December 2014:

    • Lensmeters:
    • Reichert AL200, Reichert AL500, Reichert AL700, Humphrey LA 350, Luneau L70, Nidek LM 1, Rodenstock AL 4500, Rodenstock AL 4600, Tomey TL 2000, Tomey TL 3000, Topcon CL 2000, Topcon CL 100, Topcon CL 200
    •

    • Auto Refractors:
    • Reichert RK600, Reichert RK700, Canon RF 10, Canon RK F1, Canon RK F2, Humphrey Hark 599, Nidek AR 2, Nidek AR 800, Nidek AR 900, Nidek ARK 710, Nidek AR 800, Nidek AR 900, Nidek Tonoref II, Righton/Nikon RETINOMAX, Righton/Nikon Speedy, Rodenstock CX 1000, Tomey TR 4000, Tomey TR 5000, Topcon KR 8x00, Topcon KR 8900, Topcon RMA 6500, Unicos URK 800, and Visionix L80,
    •

    • Projectors:
    • Reichert ClearChart 2, Reichert ClearChart 3P, Reichert AP250, L29 Typ 17D, M300, M&S Smart System 20/20, and Polastar
    • EMR Compatibility:
    • As of December 2016
    • * denotes bi-directional communication

    Compulink *Crystal Practice Management

    • EMR Logic/Optimed, Epic, EyeMD EMR, First Insight Maximeyes *, IFA Systems *, Management Plus, MD Intellesys, Medflow (Allscripts), Next Gen, Nextech, Officemate Software Solutions *, Revolution EHR
