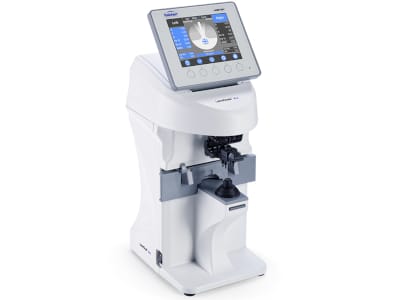

Reichert LensChek Pro Auto Lensometer

Contact us for Price & Availability Request a Quote (888) 781-4458

The all-new LensChek™ Pro Digital Lensometer® with PD + UV, part of the VisionChek™ Digital Exam Suite, combines technology with simplicity at the core of your exam. The new, compact, modern design and intuitive user interface of the LensChek Pro Digital Lensometer offers the easiest lensmeter user experience available. For example, when the target is aligned with the correct optical center, readings can be automatically “locked-in” ensuring fast, repeatable, and reliable lens measurement. LensChek Pro additionally features UV transmittance and PD measurement.

Available:

  • New
Features Specifications Financing
  • Combines technology, simplicity and value
  • Compact, modern design

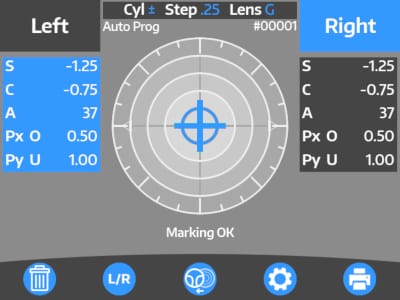

  • Intuitive user interface
  • Brilliant 5.7 inch color LCD display
  • Utilizes green measurement light
  • Automatically lock-in measurement when optical center is aligned
  • Measures single vision, bi-focal/tri-focal, and progressive lenses

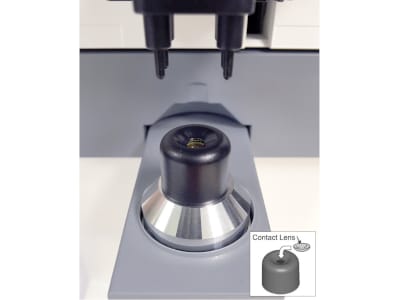

  • Hard and soft contact lens measurement mode
  • PD measurement
  • UV transmittance
  • Data output options: built-in printer and serial RS-232C port for connecting to EMR/EHR and other devices

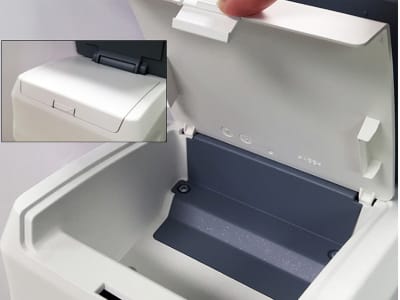

  • Built-in storage compartment for extra printer paper or accessories
  • Measurement range:
  • Sphere: -25 D to +25 D
  • Cylinder: 0 D to ±10 D
  • Axis: 0° to 180
  • LensChek Plus = •
  • LensChek Pro = • •
  • Auto Lens Detection • •
  • Modern and Compact Design • •
  • Full-Color 5.7” LCD Screen • •
  • Measures Soft & Hard Contact Lens • •
  • Marking Pens • •
  • Green Measurement Light • •
  • Internal Thermal Printer • •
  • RS-232C Serial Port • •
  • Auto Left and Right Lens Detection •
  • PD Measurement - Monocular •
  • PD Measurement - Binocular •
  • UV Transmittance •

LensChek™ Pro - Digital Lensometer® with PD + UV Specifications:

  • Catalog Number: 15185

Refractive Measurement Range:

  • Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
  • Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)
  • Axis angle: 1 to 180° (Step: 1°)
  • Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D)
  • Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D)
  • UV Transmittance Measurement: 0 to 100% (Step: 1%)
  • Pupilary Distance Measurement: 45mm to 85mm (Step: 0.5 mm)
  • UV Transmittance Measuring Wavelength: 375 nm
  • Lens Power Measuring Wavelength: 630 nm

Measureable Lens:

  • Unprocessed (Diameter: 100mm) and Framed Lens
  • Single, Multifocal, Progressive lens
  • Single Focus Hard and Soft Contact Lens (use Contact Lens Stand)

Measurement Accuracy:

  • Sphere: 0D to ± 10D = ±0.25D, else 0.50D
  • Cylinder: ±0.25D
  • Printer: Thermal line printer (Paper width: 58 mm)
  • Port: Serial RS-232C port for connecting to EMR/EHR and other devices
  • Internal Display: 145 mm (5.7 inches) color LCD monitor

Size:

  • Weight Unpacked: 4.7 Kg (10.35 lbs)
  • Display Up: 46.7 cm (18.4 in)
  • Display Down: 41.9 cm (16.5 in)
  • Width: 18.4 cm (7.3 in)
  • Depth: 22.9 cm (9.0 in)
  • Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.)

Electrical:

  • Input Power: 100 to 240V @ 50/60Hz, 60 VA
  • Fuse: T2AL 250V, 5x20mm, RoHS
  • Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)
