Reichert LensChek Plus Auto Lensometer
The all-new LensChek™ Plus Digital Lensometer®, part of the VisionChek™ Digital Exam Suite, combines technology with simplicity at the core of your exam. The new, compact, modern design and intuitive user interface of the LensChek Plus Digital Lensometer offers the easiest lensmeter user experience available. For example, when the target is aligned with the correct optical center, readings can be automatically “locked-in” ensuring fast, repeatable, and reliable lens measurement.
Available:
- New
- Combines technology, simplicity and value
- Compact, modern design
- Intuitive user interface

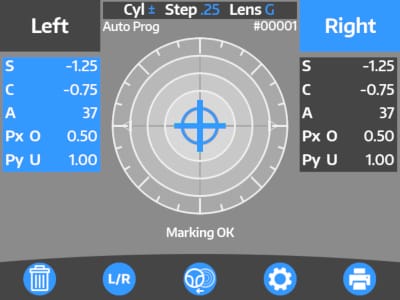

- Brilliant 5.7 inch color LCD display
- Utilizes green measurement light
- Automatically lock-in measurement when optical center is aligned
- Measures single vision, bi-focal/tri-focal, and progressive lenses
- Hard and soft contact lens measurement mode
- Data output options: built-in printer and serial RS-232C port for connecting to EMR/EHR and other devices

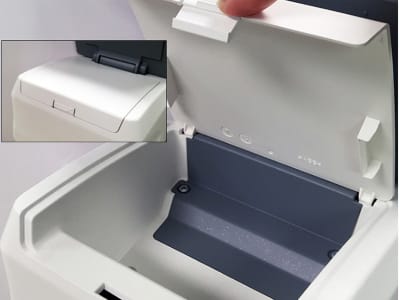

- Built-in storage compartment for extra printer paper or accessories
Measurement range:
- Sphere: -25 D to +25 D
- Cylinder: 0 D to ±10 D
- Axis: 0° to 180°
- LensChek Plus = •
- LensChek Pro = • •
- Auto Lens Detection • •
- Modern and Compact Design • •
- Full-Color 5.7” LCD Screen • •
- Measures Soft & Hard Contact Lens • •
- Marking Pens • •
- Green Measurement Light • •
- Internal Thermal Printer • •
- RS-232C Serial Port • •
- Auto Left and Right Lens Detection •
- PD Measurement - Monocular •
- PD Measurement - Binocular •
- UV Transmittance •
-
LensChek™ Plus - Digital Lensometer® Specifications:
- Catalog Number: 15180
- Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
- Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)
- Axis angle: 1 to 180° (Step: 1°)
- Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D)
- Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D)
- Lens Power Measuring Wavelength: 630 nm
- Unprocessed (Diameter: 100mm) and Framed Lens
- Single, Multifocal, Progressive lens

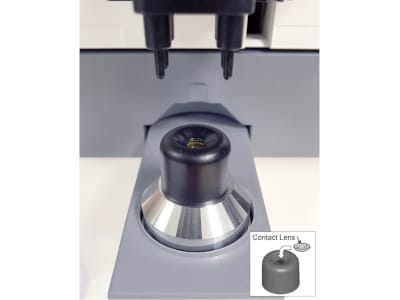

- Single Focus Hard and Soft Contact Lens (use Contact Lens Stand)
- Sphere: 0D to ± 10D = ±0.25D, else 0.50D
- Cylinder: ±0.25D
- Printer: Thermal line printer (Paper width: 58 mm)
- Port: Serial RS-232C port for connecting to EMR/EHR and other devices
- Internal Display: 145 mm (5.7 inches) color LCD monitor
- Weight Unpacked: 4.7 Kg (10.35 lbs)
- Display Up: 46.7 cm (18.4 in)
- Display Down: 41.9 cm (16.5 in)
- Width: 18.4 cm (7.3 in)
- Depth: 22.9 cm (9.0 in)
- Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.)
- Input Power: 100 to 240V @ 50/60Hz, 60 VA
- Fuse: T2AL 250V, 5x20mm, RoHS
- Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)
Refractive Measurement Range:
Measureable Lens:
Measurement Accuracy:
Size:
Electrical:
