Optovue iFusion SD-OCT & Digital Fundus Photography

Contact us for Price & Availability Request a Quote (888) 781-4458

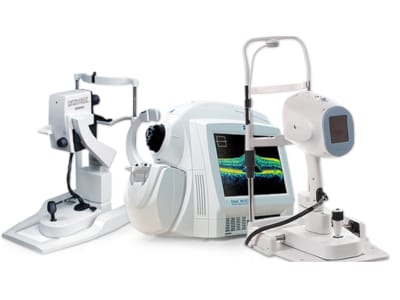

Optovue iFusion brings together the iVue and iCam into a single, integrated platform that provides both OCT features and high quality imaging. This complete Retinal Imaging Solution will save your practice both time and space by combining these functions into one, compact instrument.

Available:

  • Pre-Owned
Features Specifications Financing
  • Spectral-Domain OCT ad Fundus imaging
  • Upgrade options available as technology needs change
  • High Quality Imaging
  • Simple Integration
  • iVue SD-OCT
  • iVue Scanner: OCT Image: 26,000 A-scan/second; Frame Rate: 256 to 1024 A-scan/Frame; Depth Resolution (in tissue) : 5.0 µm
  • Scan Range: Depth: 2 or 2.3mm; Transverse: 2mm to 12mm
  • Scan Beam Wavelength: λ=840±10nm
  • Exposure Power at pupil: 700µW to 750µW
  • External Image (Live IR): FOV: 13mm x 9mm
  • Patient Interface: Working Distance: 21.2mm for retina, 16.6 for cornea; Motorized Focus Range: -15D to +10D
  •

  • iCam Non-Mydriatic Fundus Camera
  • Field Angle: 45˚
  • Image: 5.2 Million Pixels
  • Pupil Diameter: ≥4mm
  • Illumination during Alignment to Patient’s Eye: NIR LED
  • Flash for Retina Image Capture: White LED located inside the instrument at the end of the illumination optical train, synchronized to flash with the capture function
  • Cornea Image: Illumination from 3 external white LED sources in steady state mode
  • Total Focus Diopter Adjustment Range: -35D to +30D
  • Z-ranging (Working Distance): ~25mm
  • Fixation: 6 Internal & 1 Adjustable External
  • Focus Adjustment: Manual
  •

  • All-In-One Computer
  • Display: 21.5” Display
  • Operating System: Windows 7®
  • Processor: i5 Intel®
  • Memory: 4GB
  • Storage: 500GB
