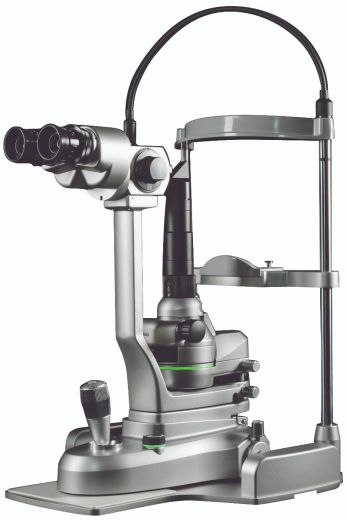

Marco M2 Ultra Slit Lamp
Marco Ultra M2 slit lamp was designed with functionality, comfort, and durability in mind. The sophisticated, cable-free design features Galilean/parallel optics and 3-step magnification (10x, 16x, 25x). Additionally, an extended aperture diameter allows for a wider field of view.
Single-element LED illumination provides unbeatable clarity, and the fully-integrated background illumination makes the Ultra M2 an affordable option for slit lamp imaging.
Single-element, high-luminance LED illumination
3-power Parallel / Galilean optics
0-14mm continuously adjustable aperture
Completely integrated (cable free), low voltage electronic system
Cobalt Blue, Red-free, Blue LED correction filters
Self-contained headrest & baseplate assembly
Integrated background illumination
Type Binocular Stereomicroscope - Parallel (Galilean)
Light Source - LED
Light Source Configuration - Compact/Horizontal
Background Illumination - Yes
Light Filters - Blue, Red-free, Blue LED Correction
Slit Width - 0-14mm continuous variable
Aperture Diaphragm Diameter - (Ø) 14, 8, 5, 3, 0.3mm
Total # Power Magnifications - 3 (10x, 16x, 25x)
Magnification Change - 3 Position Rotating Drum
Eye Pieces - 16x wide-field, high-eyepoint
Real Field of View - (Ø) 23.3mm, 14mm, 8.8mm
Interpupillary Adjustment - 52-82mm
Diopter Adjustment Range - (+/-) 7 Diopters
Horizontal Coarse Movement - 105mm
Horizontal Fine Movement - 15mm
Vertical Movement - 30mm
Fixation Light Source - Red LED on Flexible Arm
Large Patient Chin Rest - Not standard (option only)
Chinrest Elevation - 85mm
