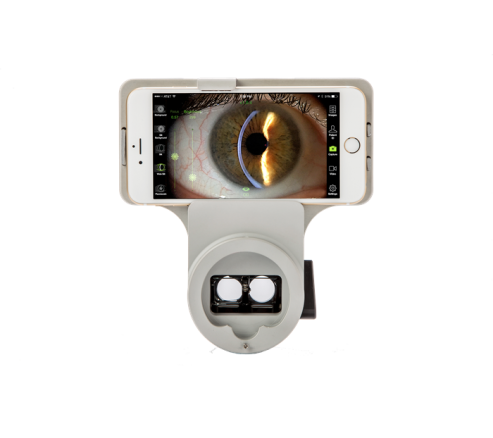

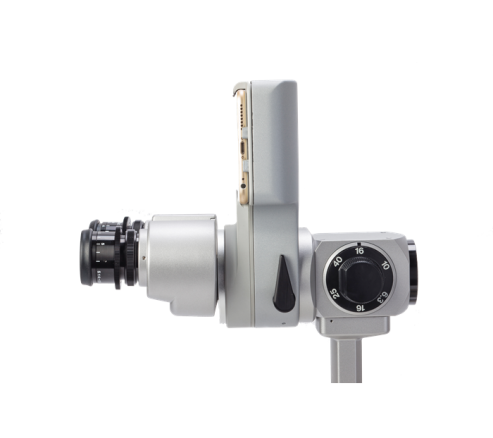

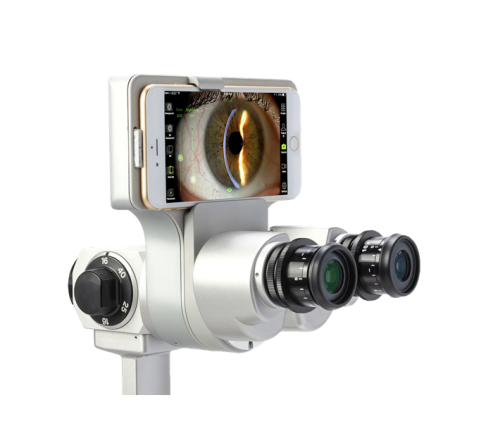

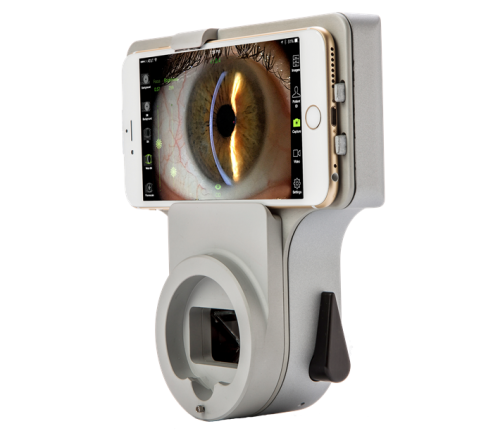

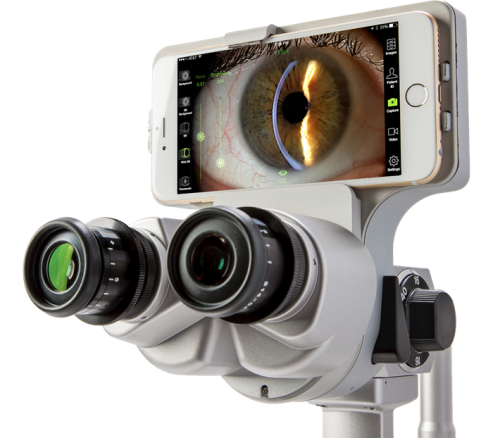

Marco ION Imaging System

Contact us for Price & Availability Request a Quote (888) 781-4458

Marco has redefined slit lamp imaging by combining an intra-optics beam-splitter/camera adapter with the tremendous computing and imaging power of Apple® Technology. This sophisticated imaging system emphasizes image quality, simplicity, and efficiency.

Compatible with most parallel style slit lamps

Available:
• New

Features Specifications Financing

Heads-up display
Efficient – Capture images in 5 seconds or less
WiFi/Cableless connection to the LAN (EMR)
12MP high-resolution images and 1080p/4K video
No additional hardware required in the exam room
Auto export feature to image management & EMR systems
HIPAA compliant


ION Compatible Slit Lamps

Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2
Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-2ED, SL-7E, SL-2G, SL-8Z
Zeiss: 100/16, 20SL & 30SL
Woodlyn: HR3; HR5 or SL9803x
Elan: 3 & Elan 5 Slit Lamps
CSO: SL990 & 9900(LED); SL980 & 9800
Haag Streit: BQ 900
Burton: 2000, SL-3MH & SL-3MZ, SL-860
Keeler: KSL-H & KSL-Z
Ibex: 5-Step
Nidek: SL1800
S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)

HARDWARE

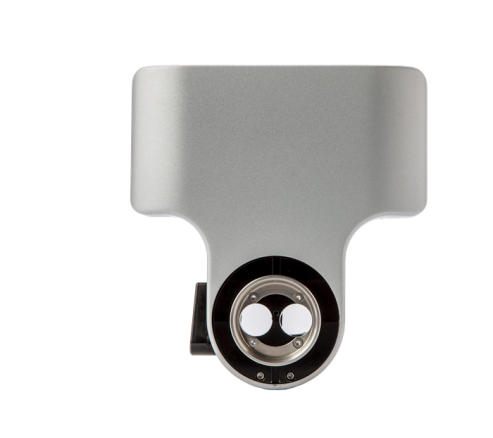

Type - Intra-Optics Beam-Splitter/Adapter
Beam-Splitter - 2-Position Lever; Down=100% to oculars; Up=70% to Camera/30% to oculars
Dimensions - 7″ x 2.5″ x 6.5″
Weight - 3 lbs
Image Capture Via - Bluetooth activated Foot-Switch or Joystick Button (Marco Slit Lamps only)
Camera -12MP camera; ƒ/1.6 aperture (iPhone 12)
Display -Super Retina XDR OLED 6.1″ display
Camera Resolution -2532 x 1170 pixel resolution at 460 ppi
Video Resolution -4K and 1080p HD video recording (30 fps or 60 fps)
Contrast Ratio - 2,000,000:1 contrast ratio
Processor -A14 Bionic chip


SOFTWARE
Operating System - Apple® iOS
Export To - Local Network; Cloud Storage & iOS/Photos
Capture Modes - Still image or HD Video
Security - HIPAA Compliant; Password Protected; AES Encryption
Imaging Technology - Apple®'s HDR, Focus Pixel, Optical Image Stabilization technology
Networking - Via Wi-Fi Connection
Included In The Box - ION Beam Splitter/Adapter, ION Imaging App, Bluetooth Control Unit, Power Adapter with 2-USB ports, 6′ USB Cable, Footswitch with 10′ Cable, 10′ Lightning iPhone Charging Cable, 10 Adhesive Cable Tie Mounts, 14 4″ Cable Ties, 2 1″ x 1″ Adhesive Velcro and 2 Vinyl Lens Covers


*Apple® iPhone sold separately.
