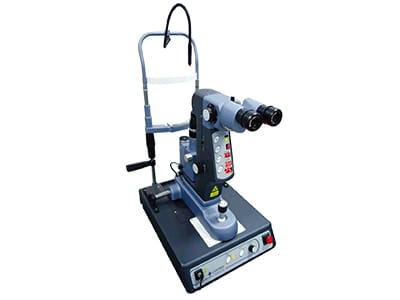

LIGHTMED LIGHTLas YAG Laser
The LIGHTMED LIGHTLas YAG is the world’s most popular and widely applied laser photodistuptor in posterior capsulotomy and iridotomy procedures. It combines unparalleled functionality, safety, and versatility with unmatched value.
Additionally, LIGHTMED's modular design allows you to add functionalities such as Selective Laser Trabeculoplasty (SLT) or vitreolysis at any time.
About LIGHTMED
LIGHTMED has been manufacturing a wide range of innovative lasers, light, and diagnostic systems for the ophthalmic industry for over 20 years. LIGHTMED is known for their superior value, providing the ultimate in functionality and versatility at an unbeatable price. Additionally, their quality technologies are all backed by industry-leading warranties and guaranteed with premium customer support.
View the LightLas YAG brochure here
Available:
- New
Twin Aiming Focusing System – fine-focusing aiming beam system allows both beams to converge together at the focal target to create a sharp, easily readable spot
Superior Crystal-Q Switch Laser Cavity – optimum tissue-cutting precision and consistent shot-to-shot output energy at the industry’s lower optimal breakdown levels
Slit lamp Integrated System – beam splitter free design features internally coated safety optics to assure unmatched procedural viewing
5 Step Magnification Changer – helps improve diagnosis capabilities at a convenient working distance
± 500 µm YAG posterior/anterior offset – eliminates lens pitting and provides higher accuracy and greater control
Wide Field Optics
Easily Upgradeable to V-Series – add vitreolysis functionality for an even more powerful multi-purpose workstation
Modular design – allows you to add technologies such as SLT at any time
Laser type: Crystal Q-switched Nd:YAG
Wavelength: 1064 nm
Energy range: 0.2 to ≤ 15 mJ (in single pulse mode), 10 to ≤ 25 mJ (in double pulse mode), 20 to ≤ 45 mJ (in triple pulse mode)
Pulse width: 4 nanoseconds
Treatment spot size: 8 μm
Burst mode: 1, 2, or 3 pulses each burst; selectable
Mode structure: Fundamental; diffraction limited
Average air breakdown: ≤ 2.1 mJ; ≤ 1.5 mJ (in liquid solution)
Cone angle: 16°
Treatment beam offset range: ±500 μm; continuously variable
Laser repetition rate: Up to 3.0 Hz (single pulse); up to 2.3 Hz (double pulse); up to 2 Hz
(triple pulse)
Aiming beam: Dual beam laser diode; continuous wave (CW); 635 nm (red)
Magnification: Integrated 5-position: 5x, 8x, 14x, 25x, and 38x
Cooling: Air convection; passive
Dimensions: 72 cm (L) x 54 cm (W) x 54 cm (H)
