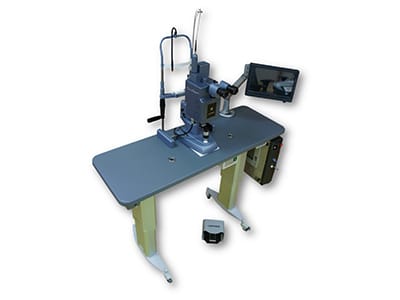

LightMed LIGHTLas TruScan Pattern Scanning Multi-Wavelength Laser

Contact us for Price & Availability Request a Quote (888) 781-4458

The LightMed LIGHTLas TruScan Pattern Scanning Multi-Wavelength Laser offers versatile, safe, and repeatable management for retinal pathologies and glaucoma. Pattern scanning laser delivery provides ophthalmologists with enhanced treatment outcomes in both continuous-wave (CW) and sub-threshold modalities.

The LIGHTLas TruScan is available with either single or dual wavelengths (532nm Green, 577nm True-Yellow, 670nm Red, and 810nm Infrared) and includes the largest range of customizable laser patterns. In addition to traditional photocoagulation capabilities, LightMed’s tissue-friendly sp-mode™ allows safe and effective treatment at the subthreshold level.

Available:

  • New
Features Specifications Financing
  • Choice of single or dual wavelengths
  • 532nm Green, 577nm True-Yellow, 670nm Red, and 810nm Infrared
  • Pattern scanning laser delivery
  • Continuous-wave and sub-threshold modalities
  • Induction of relaxation duty cycles in the sub-threshold mode
  • Sub-threshold mode helps reduce laser-caused tissue damage and other side effects
  • Widest range of customizable laser patterns, including, circles, squares, lines, triangles, and arcs
  • Power Output:
  • Yellow (577nm): 2W (on Cornea)
  • Infrared (810nm): 3W (on Cornea)
  • Red (670nm): 700mW (on Cornea)
  • Green (532nm): 3W (on Cornea)
  •

  • Wavelength:
  • Yellow: 577nm
  • Infrared: 810nm
  • Red: 670nm
  • Green: 532nm
  •

  • Mode of Operation: Continuous Wave
  • Laser Type: Optically Pumped Dual Diode Solid State
  • Exposure Duration: 0.015 – 3.0s, continuously variable
  • Repeat Interval: 0.01 – 3.0s, and single
  •

  • Micro Pulse Setting (disengaged in 670nm and 532nm mode):
  • Micro Pulse Duration: 200µs
  • Micro Pulse Duty Cycle: 10%
  • Micro Pulse Period: 1800µs
  •

  • Pattern Scanning (disengaged in 670nm mode): Single, Line, Square (2x2, 3x3, 4x4, 5x5), Macular Arc (single, double, triple ¼, ½, ¾), Circle, and Triangle – Spot width, density and 360 rotation available for each pattern.
  •

  • Spot size:
  • Single Spot: Continuously variable 50µm to 1000µm
  • Scanning Patterns: Continuously variable 100µm to 500µm
  •

  • Safety Class: Class 4
  • Aiming Laser: Red laser diode (650nm) 0.1 – 1.0mW continuously variable
  • Cooling System: Fan cooled and TEC’s for Laser Diode and Crystal
  •

  • Dimensions:
  • TruScan Console: 12cm H x 38cm W x 40cm D
  • Complete System on Table: 75cm H x 120cm W x 42cm D
  • TruScan on Trolley: 90cm H x 45cm W x 46cm D
  •

  • Weight:
  • Laser Console: 10kg
  • Complete System on Table: 92kg
  • System on Trolley: 72kg
