Zeiss Visulas YAG III Laser

Contact us for Price & Availability Request a Quote (888) 781-4458

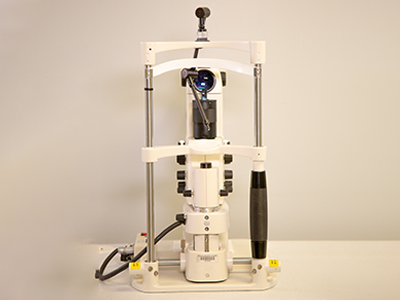

The VISULAS® YAG III from Carl Zeiss is a milestone in the development of practice-oriented photo disruption laser systems. It brings together latest generation optical experience and technological excellence and provides maximum ease of use with the lowest possible amount of patient stress. The VISULAS YAG III is used for applications like posterior capsulotomy and iridotomy.

The VISULAS YAG III focuses the optimum amount of laser energy directly to the target thanks to its Super-Gaussian beam profile. It therefore requires less energy to achieve the optical breakdown, as little as 2.5 mJ in air. The result: high-precision treatment of the patient’s eye using a minimum of laser energy.

Depending on the procedure, the focal point of the aiming beam is set precisely and reproducibly before, behind or directly at the focal point of the disruption laser.
The high-quality laser source of the VISULAS YAG III is perfectly integrated into the ZEISS laser slit lamp, which can also be used as a fully-equipped diagnostic slit lamp.
The unique 4-point aiming beam ensures a high degree of aiming accuracy. Astigmatic distortions can be identified clearly. The selected energy level can be corrected accordingly prior to the laser application.

The VISULAS® YAG III offers an outstanding range of diagnostic possibilities and permits high-precision examinations to be carried out immediately before and after treatment – without any need to move the patient. The extensive selection of optional accessories perfectly completes the laser’s wide range of functions.

Features Specifications Financing
  • Fully integrated for superior imaging quality when combined with Zeiss laser slit lamps
  • Variable focus shift
  • Precision targeting with a unique four-point aiming beam
  • 1064 nm laser wavelength
  • Gentle laser treatment
  • Available in combination with a photocoagulation laser - VISULAS YAG III Combi or VISULAS Trion Combi



ACCENTO Eyepiece
The integrated multi-function eyepiece displays important treatment parameters while maintaining a clear overview of the treatment area.

ACCENTO Ergo Tube - The convenient viewing angle
Allows treatment in a comfortable and relaxed position – even after several hours of laser therapy.

Parallel or convergent tubes
It is possible to choose the binocular that provides the greatest convenience.

DigiCam adapter
Supports a wide range of standard camcorders and digital cameras. It is suitable for demonstrations to large groups and for digital documentation.

Laser warning light
Laser warning light outside the laser therapy room to indicate when the laser is switched on.

Instrument table
Vertically-adjustable instrument table is also suitable for patients in wheelchairs.

Safety goggles
Attractively designed laser safety goggles for reliable protection as per DIN EN 207.

Transport case
Transport case to store and carry your laser plus accessories.

Laser wavelength
1064 nm

Mode
Super-Gaussian

Optical breakdown
Typically 2.5 mJ in air

Pulse length
< 4 ns (typically 2-3 ns)

Single pulse
Typically 10 mJ

Double pulse
Typically 23 mJ

Triple pulse
Typically 35 mJ

Energy attenuation
22 levels

Pulse repetition frequency
Max. 2.5 Hz

Exit aperture
Angle: 16°

Aiming beam
Diode approx. 670 nm: Power: 5 µW-150 µW: 4-point aiming beam focusing system

Focus shift
Variable: +150 µm; 0; -150 µm

Electrical connection
100-240 V, 50/60 Hz

Control panel dimensions
(H 135 x W 210 x D 330) mm (H 5.3 x W 8.3 D 13.0) inches

Control panel weight
(8.8 lbs)

Magnifications
5 / 8 / 12 / 20 / 32 x

Slit height
in 1 / 3 / 5 / 9 / 14 mm

Slit width
0-14 mm

Illumination
12 V, 30 W; brightness continuously adjustable
