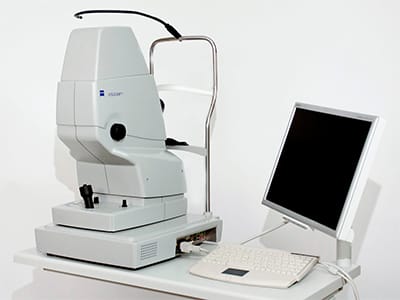

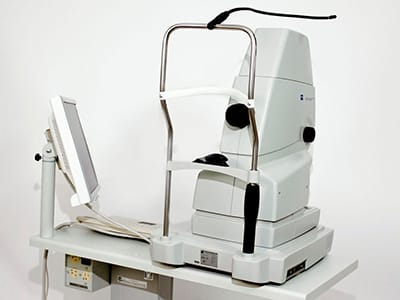

Zeiss Visucam NM/FA Non-Mydriatic Fundus Camera
The versatile Zeiss Visucam NM/FA is a comprehensive system that provides everything the eye care professional needs for comprehensive assessment and management of eye diseases such as diabetic retinopathy, glaucoma, and AMD. It features Zeiss optics and superior non-mydriatic color fundus photography, as well as Fluorescein Angiography. Indocyanine Green Angiography and Fundus Autofluorescence capture modes are also optional add-ons.
The user-friendly software, innovative stereo mode, a variety of internal fixation options, and Zeiss AutoMap makes the Visucam NM/FA the premier choice in fundus imaging systems. Imaging is made easy on this integrated instrument that combines the capture process and image review on one large display screen.
Smart adjustment aids such as pupil check, small pupil mode (≥ 3.3 mm), working distance dots, and internal fixation targets support an efficient capture process. Auto-focus, auto-flash, automatic recognition of anterior and posterior segments and laterality, and auto-export enable a quick and efficient image capture. The Visucam NM/FA also includes a guided stereo mode that provides 3D diagnostics that can be compared.
Through our exclusive partnership, EMS obtains a consistent supply of used Zeiss Visucam NM/FA units directly from Zeiss. Every unit comes with a 1-year warranty to guarantee satisfaction. Additionally, units are refurbished with factory replacement parts and by our Zeiss-trained technicians. Moreover, every Visucam retinal camera from EMS is fully registered with Zeiss for seamless support.
Highly corrected ZEISS optics with an advanced professional grade digital sensor
Integrated patient database, including multiple options for image comparison and review
Quick image transfer via network, USB stick or DVD/CD
Network ready and DICOM conformant Advanced integration of hardware and software
Brilliant true color retinal images with Zeiss Autoflash Correct exposure
45 and 30 degree field angles
3.3 mm minimum pupil diameter
Blue and red wavelength range
45° and 30°
Color, red-fr ee, blue and red pictures, stereo pairs and pictures of the anterior segment, as well as fluorescein angiography (FA).
Optional: autofluorescence, Indocyanin Green Angiography (ICG)
Optical filters for capture modes FA + ICG exciter and barrier filters, filters for green and blue images, filters for fundus autofluorescence and UV / IR barrier filters
Compensation for ametropia
+35 D… –35 D, continuous
≥ 4.0 mm
≥ 3.3 mm (30° small pupil mode)
External and internal
(cross with 3 different sizes and hexagon)
Attention mode for internal fixation target (magnified and blinking cross)
Available range: +/- 15D
Various programmed sequences or freely positionable as combination with stereo mode too
Size: 410 x 480 x 650 mm
Weight: 30 Kg
Depth: 410 mm
Frequency: (Hz) 50/60 Hz
Height: 650 mm
Power: Supply Voltage 100 - 240 V AC
Width: 480 mm
