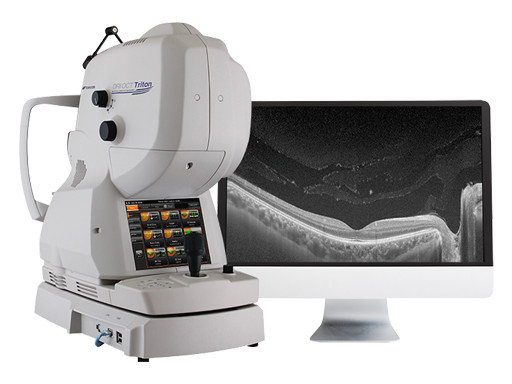

Topcon DRI OCT Triton Swept Source OCT
The Topcon DRI OCT Triton Swept Source OCT uses swept-source technology to allow visualization into the deepest layers of the eye – even through cataracts, hemorrhages, gas bubbles and other media opacities, making it possible for more patients to be imaged. The fast 100 kHz scanning speed and invisible scan beam rapidly capture detailed images, resulting in fewer motion artifacts and stunning image quality. Decrease chair time and improve your clinical workflow with fewer rescans and multimodal imaging including, OCT, true-color fundus photography, FA1 and FAF1.
HIGH RESOLUTION: Multimodal platform provides easy, yet comprehensive comparison of microvascular impairment with FA1, FAF1, OCT and color fundus images.
SCAN MORE PATIENTS: Swept-source technology allows imaging through media opacities
FEWER RESCANS: Invisible scan beam allows patients to focus on the fixation target and reduce involuntary eye movement
WIDE SCAN: A 12mm x 9mm scan encompasses the optic nerve and macula and can be acquired in 1.8 seconds for fast assessment of the posterior pole.
RICH, DETAILED IMAGES: Image quality is further enhanced by PixelSmart® Technology2
- Imaging Modes Color, FA,* FAF,* Red-Free,** IR
- Field of View 45° / 30° (Digital Zoom)
- Operating Distance 34.8mm
- Minimum Pupil Diameter Ø4.0mm / Small Pupil Mode: Ø3.3mm
- Resolution (On Fundus)
- Center: 60 Lines/mm or more,
- Middle (r/2): 40 Lines/mm or more,
- Periphery (r): 25 Lines/mm or more
- Scan Range (On Fundus) 6 to 12mm
- Scan Patterns
- 3D Wide: 12x9mm
- 3D Macula: 7x7mm
- 3D Optic Disc: 6x6mm
- Combination Scan: 12x9mm + 5 Line Cross
- Line: 6-12mm
- 5 Line Cross: 6-12mm
- Scan Speed 100,000 A-Scans Per Second
- Lateral Resolution 20 μm
- Axial Resolution
- Optical: 8 μm
- Digital: 2.6 μm
- Minimum Pupil Diameter Ø2.5mm
- Fixation Target Internal Fixation Target/ Peripheral Fixation Target / External Fixation Target
- Diopter Range
- Without the diopter compensation lens: -13D to +12D
- When the concave compensation lens is used: -12D to -33D
- When the convex compensation lens is used: +11D to +40D
- Photography Type IR
- Operating Distance 17mm
- Scan Range (On Cornea) 3 to 16mm
- Scan Patterns Line Anterior Segment: 3-16mm / Radial Anterior Segment: 6-16mm
- Fixation Target Internal Fixation Target / External Fixation Target
* FA photography and FAF photography can be performed in only DRI OCT Triton (plus).
** Digital red-free
*** Observation & photography of anterior segment can be performed only when the anterior segment attachment kit is used.
