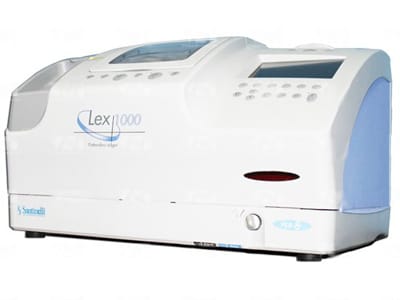

Santinelli LEX-1000 Lens Edger

Contact us for Price & Availability Request a Quote (888) 781-4458

The Santinelli LEX-1000 patternless edger has become renowned for its ability to edge high curve lenses for wrap-style frames.

Click here to watch a video of our extensive edger refurbishment process.

Available:

  • Pre-Owned
Features Specifications Financing
  • Precise Grooving
    The unit provides superior groove quality with “pin-point” accuracy. The groove secures the lens flawlessly within the frame, virtually eliminating job do-overs and resulting in significant savings.
  • Click Mode Software
    The Lex 1000 can be equipped with Click Mode™ software software to create customizable, magnetic Chemistrie Sunlenses for virtually any frame. This technology automates the process and allows you to differentiate your practice and increase profits with the click of a button.
  • Today’s Lenses
    The Lex 1000 was designed with an Advanced Soft Grind Mode to take on today’s advanced super-hydrophobic A/R coated lenses, maintaining axis to avoid slippage. For small “B” processing, the Lex 1000 can edge lenses with a narrow corridor of 15.5 mm.
  • Ease of Use
    The Lex 1000 is a sleek, ergonomically designed edger which features Navigation Operation technology and a sensor status troubleshooting feature.
  • Drilling Add-On
    Incorporate drilling with the addition of the compact Lex Drill which can interface seamlessly with the Lex 1000. This drill processes complex drilling jobs automatically, with extreme precision. The Lex Drill can easily process twin holes, rectangular holes, notches, jewel holes and countersunk holes automatically. With the Lex Drill, holes are drilled 90 degrees perpendicular to the front based curve of the lens automatically. Custom angling can be adjusted from 0 to 30 degrees.
  • Dimensions: 20¾” W x 19½” D x 13½” H
  • Weight: 92 lbs (S and L modes) / 80 lbs (NT model)
  • Power Supply: AC AC115V, 50/60 Hz
  • Power Consumption: 1.3 kVA max.
