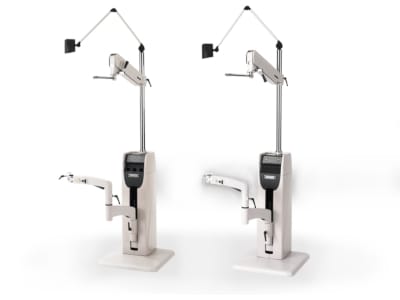

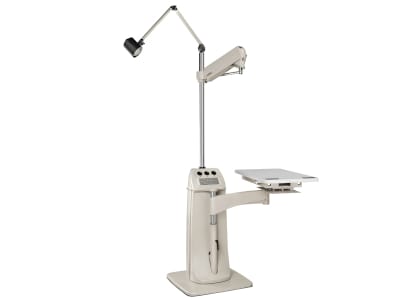

Reliance 8722 Instrument Stand
The table top is designed primarily for any model slit lamp in the first examination position with another instrument of choice in the second position. The arm swings in front of the patient perfectly positioning the slit lamp or first instrument in front of the patient. When the first examination is completed, the table translates to position the second instrument in front of the patient. If there is no second instrument, the space presents a useful writing surface. The arm features two pivot points, one at the base of the arm, and one underneath the table top which allows for the positioning of the table top further away from the patient without changing the center line to accommodate larger patients.
- The table top features a safety switch plate which automatically stops the elevation of the chair if the patient legs touch the switch plate as the height of the table top is fixed, with the standard setting at 35.5” from the floor with an optional setting of 32.5” from the floor. The unit will accommodate left handed examination rooms. This orientation needs to be indicated at production of unit.
- The model 8722 features an upper refractor arm and an overhead lamp as standard. The console in addition to the charging wells features switching to control the raising and lowering of the chair, overhead lamp and binding posts. The model 8722 is compatible with any Reliance low model chair, although the preferred mate would be the model 522 as shown in the photo.
- The Model 8722 delivery system has passed extensive and rigorous testing by CSA. It is CSA certified to the International Electrical Standard IEC 60601-1 for general safety standards and UL certified to IEC 60601-1-2 for EMC.
