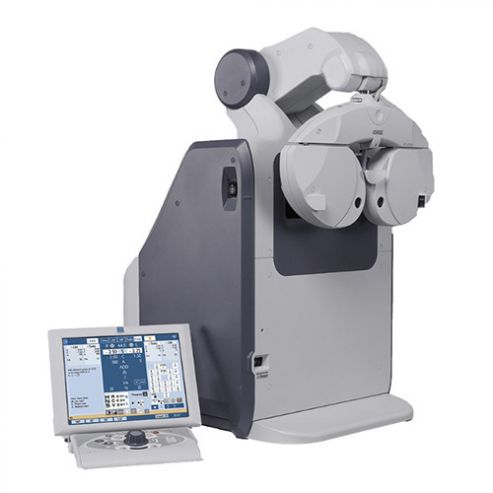

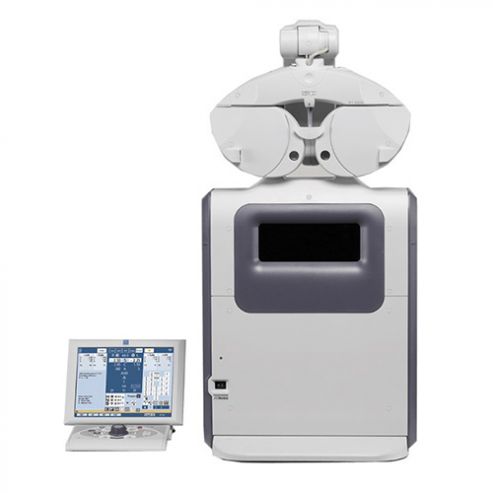

Marco TS-610 Combined Digital Refractor and Chart System

Contact us for Price & Availability Request a Quote (888) 781-4458

The TS-610 is versatile with a compact 2’ x 2’ footprint that can easily be installed anywhere. The forehead rest range of 25±2 mm can accommodate more patients. Flexible measurements can be taken from either side for seated or standing patients.

FEATURES:

Flexible Measurements: Flexible measurements from either side for seated or standing patients

Forehead Rest: The forehead rest range of 25±2 mm can accommodate more patients.

Reduces Accommodation: Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open.

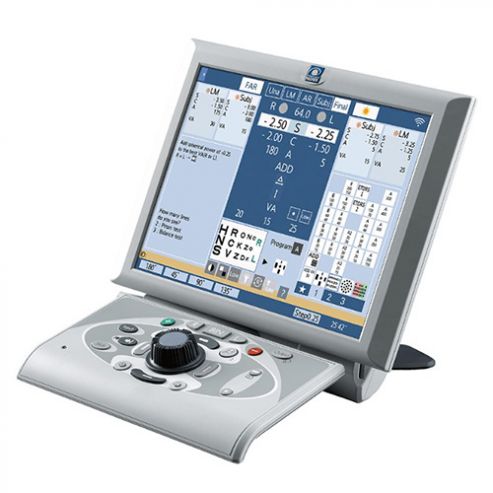

10.4" Touchscreen: Large 10.4” color LCD touch screen

Ambidextrous Controls: Flexible measurements can be taken from either side for seated or standing patients.

Specifications Financing
Chart Type T, UK, M, P, PhM, C
Refraction Distance Distance: 5 m, Near: 40 cm
Mask Horizontal line, Vertical line, Single letter
Filter Red / Green
Binocular vision test Red-green, Prism
Display 10.4-inch Color LCD
Printer High Speed Line Printer
The Refractor Head Vertical Motion Unit Is At The Bottom 446 (W) x 520 (D) x 763 (H) mm
17.6 (W) x 20.5 (D) x 30.0 (H) in
The Refractor Head Vertical Motion Unit Is At The Top 446 (W) x 487 (D) x 907 (H) mm
17.6 (W) x 19.2 (D) x 35.7 (H) in
Mass 34.3 kg, 75.6 lbs
Standard Accessories Forehead Rest, Face Shields, VD Check Adapter, Stylus Pen, Printer Paper, Dust Cover, Power Cord, Cover Plate, Cap, Screw, Hexagonal Wrench, Phillips Screwdriver, Communication Cable
Optional Accessories Eye Care card, Wireless LAN module, Magnetic card reader, Barcode scanner, Memory box, LAN cable, Control console tray, Control console – printer adapter
Measurable range Sphere: -29.00 to +26.75 D (0.12/0.25/0.50 to 3.00 D increments)
-19.00 to +16.50 D (cross cylinder test, prism test)
Cylinder: 0.00 to ±8.75 D (0.25/1.00/2.00/3.00 D increments)
Axis: 0 to 180º (1º/5º/15º increments)
PD: 48 to 80 mm, 54 to 80 mm (100% convergence possible PD)
Prism: 0 to 20Δ (0.1 / 0.5 / 2Δ increments)
Visual Field 40º (VD = 12 mm), 39º (VD = 13.75 mm)
Forehead Rest Adjustment 25±5 mm
Vertex Distance Marking 12, 13.75, 16, 18, 20 mm
Level Adjustment ±2.5°
Refractor Arm Electrically-Driven
Up-&-Down Of Refractor Arm 190 mm
Cross Cylinder Lens ±0.25, ±0.50, ±0.25 D auto cross
Occluder Available
Pinhole Plate ø2 mm
Red / Green Filter Right Eye: Red, Left Eye: Green
PD check lens Available
Fixed Cross Cylinder Lens ±0.50 D (fixed with the Axis set at 90º)
Spherical Lenses For Retinoscope 0/+1.5/+2.0 D (selectable by setting)
Red Maddox Rod Right Eye: Horizontal, Left Eye: Vertical
Dissociation Prism Right eye: 6ΔBU / Left eye: 10ΔBI
Dissociation prism for binocular balance Right eye: 3 to 10ΔBD / Left eye: 3 to 10ΔBU
Dissociation prism for horizontal phoria Right eye: 3 to 10ΔBU / Left eye: 3 to 10ΔBD
Dissociation prism for vertical phoria Right eye: 5 to 15ΔBI / Left eye: 5 to 15ΔBI
Fixed cross cylinder & dissociation prism for horizontal phoria Right eye: 3 to 10ΔBU / Left eye: 3 to 10ΔBD
Binocular open fogging 0.00 to +9.00 D
Power Supply AC 100 to 240 V, 50 / 60 Hz
Power Consumption 200 VA
