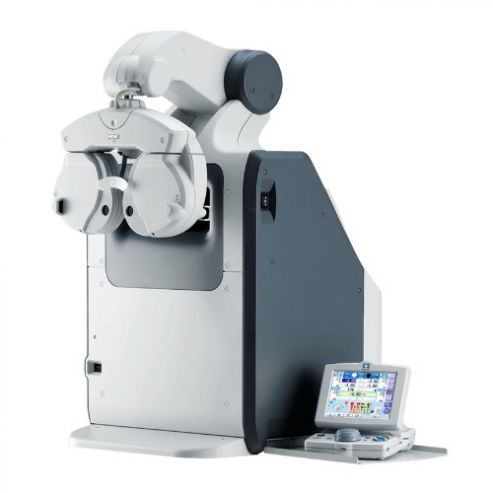

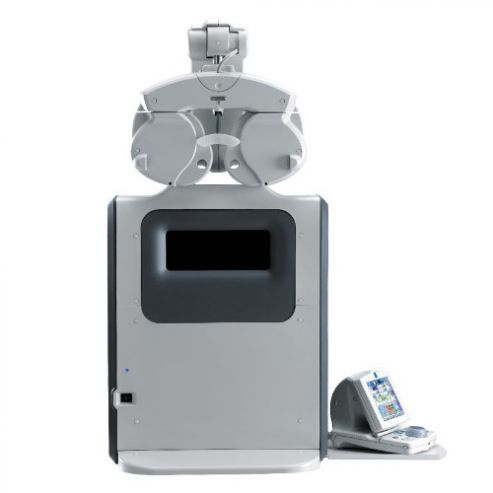

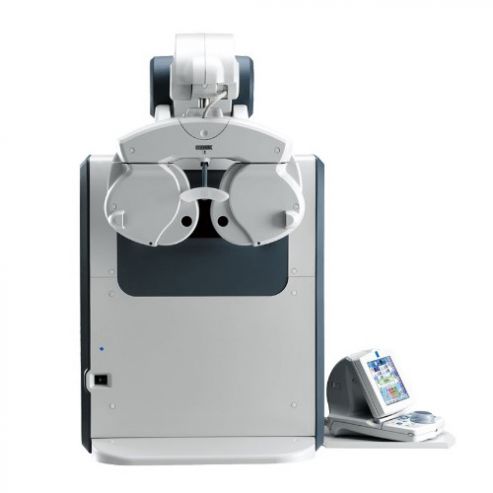

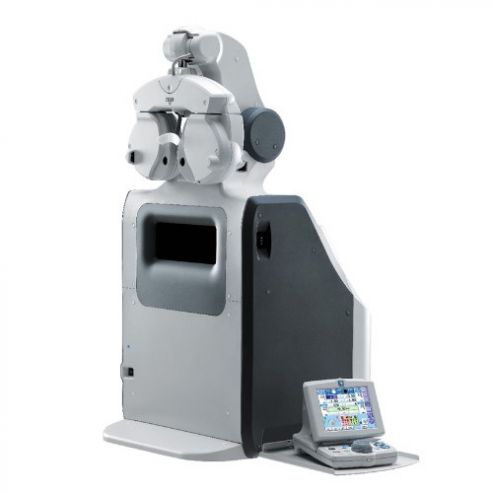

Marco TS-310 Tabletop Refractor
The TS-310 tabletop refractor is a tabletop subjective refraction system that integrates chart and refractor into a single unit. Marco’s recognized quality examination is embodied in a new, groundbreaking design that redefines the conventional refraction systems and significantly minimizes the examination footprint. The TS-310 tabletop refractor fulfills the need for simple and reliable refraction equipment, in an attractive design, wherever space limitations exist.
FEATURES:
Flexible Measurements: Regardless of personal measurement style, or sitting / standing ergonomic preferences, the TS-310 ensures comfortable examinations.

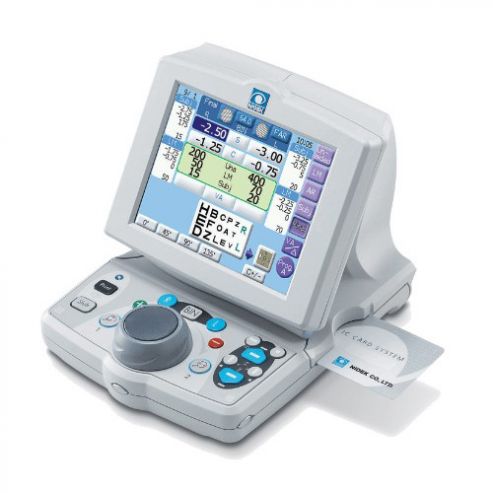

5.7" Touchscreen: The 5.7-inch color LCD touch screen displays all data with high visibility. Simple, understandable, and comfortable user interfaces ensure an effective operation
Ambidextrous Controls: Ambidextrous Controls and dial button with S/C/A mode key allows for quick and smooth refractive value changes.
Ergonomic Design: Beautiful ergonomic design enhances a stress-free examination environment for both operator and patient, while maintaining superior accuracy.
Smooth Lens Change: Speedy, smooth and quiet lens changing enables operator to make minute changes of prescription at the touch of a button.
| Chart Type | T, UK, M, P, PhM |
|---|---|
| Refraction Distance | Distance: 5 m, Near: 40 cm |
| Mask | Horizontal line, Vertical line, Single letter |
| Filter | Red / Green |
| Binocular vision test | Red-green, Prism |
| Display | 5.7-inch Color |

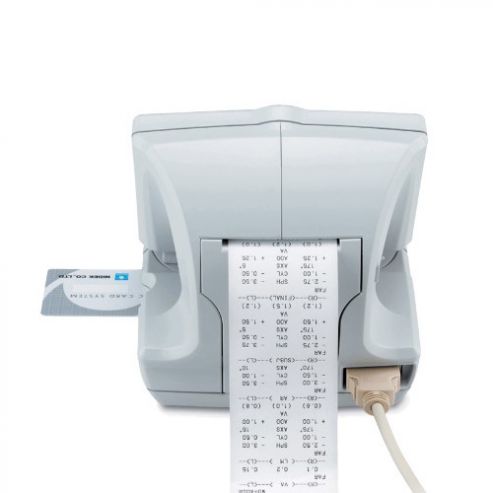

| Printer | High Speed Line Printer |
| The refractor head vertical motion unit Is at the bottom | 446 (W) x 519 (D) x 763 (H) mm 17.6 (W) x 20.4 (D) x 30.0 (H) in |
| The refractor head vertical motion unit Is at the top | 446 (W) x 487 (D) x 907 (H) mm 17.6 (W) x 19.2 (D) x 35.7 (H) in |
| Mass | 32 kg, 70.5 lbs |
| Standard Accessories | Forehead Rest, Face Shields, VD Check Adapter, Stylus Pen, Printer Paper, Dust Cover, Power Cord, Cover Plate, Cap, Screw, Hexagonal Wrench, Phillips Screwdriver |
| Optional Accessories | Eye Care Card, Communication Cable For An Auto Refractometer, Communication Cable For A Computer, Control Box Tray |
| Measurable range | Sphere: -19.00 to +16.75 D (0.25 / 0.5 to 3 D increments) Cylinder: 0.00 to ±6.00 D (0.25 / 1 D increments) Axis: 0 to 180° (1°/5° increments) PD: 48 to 80 mm 5, 4 to 80 mm (100% convergence possible PD) Prism: 0 to 20Δ (0.1 / 0.5 / 2Δ increments) |
| Visual Field | 40° (VD = 12 mm), 39° (VD = 13.75 mm) |
| Forehead Rest Adjustment | 14 ±2 mm |
| Vertex Distance Marking | 12, 13.75, 16, 18, 20 mm |
| Level Adjustment | ±2.5° |
| Refractor Arm | Electrically-Driven |
| Up-&-Down Of Refractor Arm | 190 mm |
| Cross Cylinder Lens | ±0.25 D |
| Occluder | Available |
| Pinhole Plate | ø2 mm |
| Red / Green Filter | Right Eye: Red, Left Eye: Green |
| PD check lens | Available |
| Fixed Cross Cylinder Lens | ±0.50 D |
| Spherical Lenses For Retinoscope | +1.5 / +2.0 D |
| Red Maddox Rod | Right Eye: Horizontal, Left Eye: Vertical |
| Dissociation Prism | Right Eye: 6ΔBU / Left Eye: 10ΔBI, Right Eye: 3ΔBD / Left Eye: 3ΔBU |
| Power Supply | AC 100 to 240 V, 50 / 60 Hz |
| Power Consumption | 130 VA |
