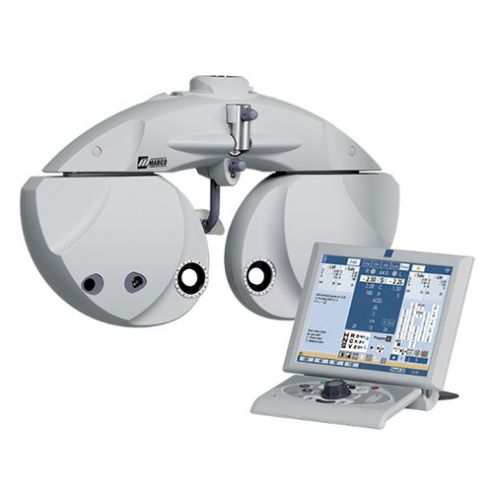

Marco TRS-6100 Digital Refractor

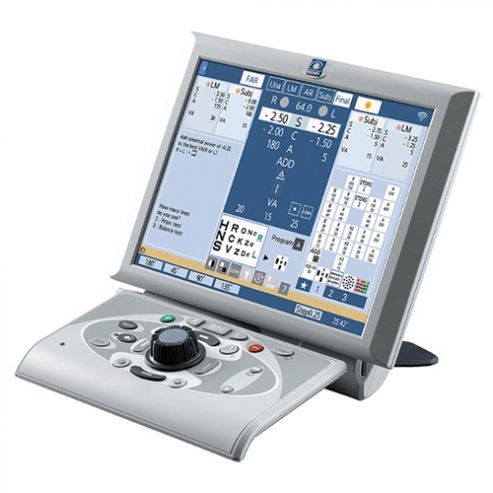

The TRS-6100 Digital Refractor is comprised of a control panel with a large 10.4″ color LCD touch screen and an intuitive, ergonomic keyboard for simple one-hand operation. The refractor forehead rest has a range of 25±2 mm to accommodate more patients. With programmed monocular fogging, this reduces accommodation and allows more realistic refractions with both eyes open. The tilt screen and angled refractor head allows realistic near testing. Your most frequently used charts can be saved on a ‘favorites’ page for quick and easy access.
FEATURES:
Near Testing: Tilt screen and angled refractor head allows realistic near testing
Forehead Position Detector: Forehead rest range of 25±2 mm accommodates more patients
Monocular Fogging: Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open
Ergonomic Design: Intuitive, ergonomic keyboard for simple one-hand operation
10.4" Touchscreen: Large 10.4″ color LCD touch screen
| Sphere | -29.00 to +26.75 D (0.12/0.25/0.50 to 3.00 D increments) -19.00 to +16.50 D (cross cylinder test, prism test) |
|---|---|
| Cylinder | 0 to ±8.75 D (0.25, 1.00, 2.00, 3.00 D increments) |
| Axis | 0 to 180° (1° / 5° / 15° increments) |
| Pupillary Distance | Distance PD: 48 to 80 mm Near PD (35 cm): 50 to 74 mm Full convergence Distance PD: 54 to 80 mm |
| Prism | 0.00 to 20.00Δ (0.1, 0.5, 2Δ increments) |
| Auxilary Lenses | Cross cylinder: ±0.25D, ±0.50D, ±0.25 D auto cross Occluder: Available Pinhole: 2.0 mm in diameter Color filter: Right red, Left green Polarizing filter: Right 135° / Left 45°, Right 45° / Left 135° Fixed cross cylinder: ±0.50 D (fixed with the Axis set at 90º) Spherical lens for retinoscope: 0D, +1.5D, +2.0 D (selectable by setting) Maddox rod (red): Right horizontal, Left vertical Dispersion prism (fixed): Right 6ΔBU, Left 10ΔBI Dispersion prism for binocular balance: Right 3-10ΔBD, Left 3-10ΔBU Dispersion prism for horizontal phoria: Right 3-10ΔBU, Left 3-10ΔBD Dispersion prism for vertical phoria: Right 5-15ΔBI, Left 5-15ΔBI |
| Refraction Distance for Near Vision | 350 to 700mm (can be changed in 50mm increments) |
| Visual Field | 40° (VD = 12mm) 39° (VD = 13.75mm) |
| Vertex Distance Scale | 12, 13.75, 16, 18, 20 mm |
| Forehead Rest Adjustment | 25±2 mm |
| Horizontal Level Adjustment | ±2.5° |
| Display | 10.4-inch color LCD |

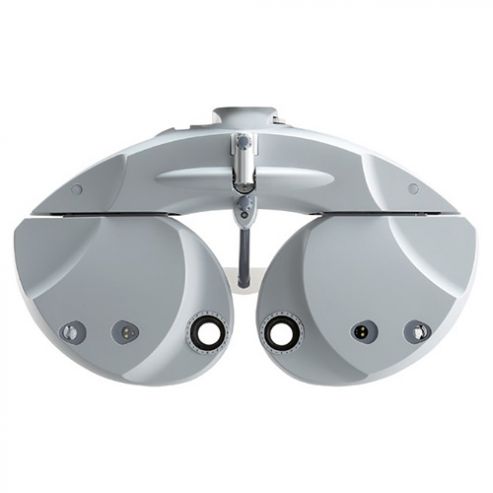

| Refractor Head Main Body | 16.06 x 4.21 x 10.91″ / 7.1 lbs |
| Control Box | 10.23 x 9.06 x 8.15″ / 4.6 lbs |
| Relay Box | 7.44 x 8.7 x 2.87 / 3.1 lbs |
| Printer | 3.98 x 3.39 x 4.76 / 1.3 bs |
