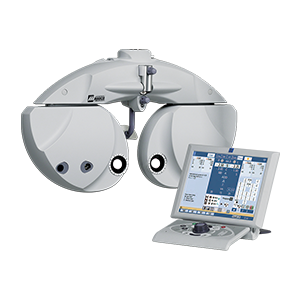

Marco TRS-6100 Digital Refractor

Contact us for Price & Availability Request a Quote (888) 781-4458

The TRS-6100 Digital Refractor is comprised of a control panel with a large 10.4″ color LCD touch screen and an intuitive, ergonomic keyboard for simple one-hand operation. The refractor forehead rest has a range of 25±2 mm to accommodate more patients. With programmed monocular fogging, this reduces accommodation and allows more realistic refractions with both eyes open. The tilt screen and angled refractor head allows realistic near testing. Your most frequently used charts can be saved on a ‘favorites’ page for quick and easy access.

As part of the Advancing Eyecare Alliance and technology partners program, your EMS representative will work directly with Marco Ophthalmic to provide you fully-customized solutions for your practice.

Designed and Manufactured by NIDEK · Represented by Marco

Features Specifications Financing

Increase Patient Flow & Revenue

By streamlining the flow of data from pre-test instruments, simplifying the exam process for the patient, linking charts to coordinate with selected tests, and speeding up the final verification by the patient, significant time can be saved over the entire refraction process. Saving minutes per patient throughout the day allows for increased time spent with patients discussing their care, or additional patients in the schedule.

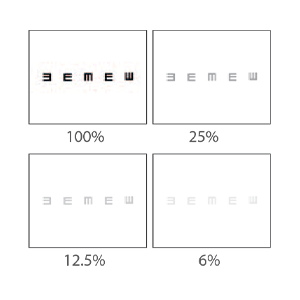

Contrast Test

Programmed monocular fogging reduces accommodation & allows more realistic refractions with both eyes open.

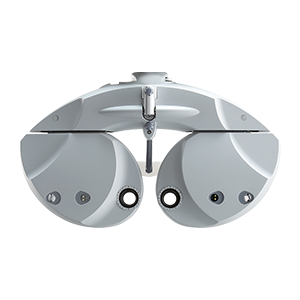

Accommodate More Patients

The refractor forehead rest has a range of 25±2 mm to accommodate more patients.

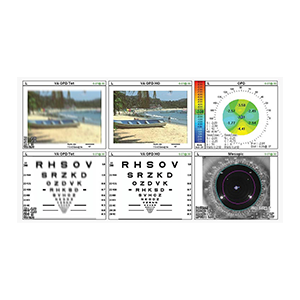

OPD-Scan III Summary

OPD Wavefront maps can be displayed for more effective diagnostics and patient education.

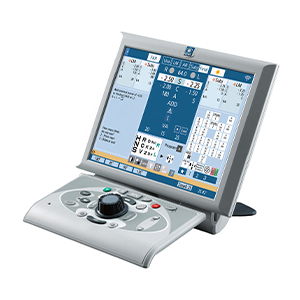

Remote Touch Screen Display

Large 10.4″ color LCD touch screen with an intuitive, ergonomic keyboard for simple one-hand operation.

Tilt Screen for Near Testing

The tilt screen and angled refractor head allows realistic near testing.

Dimensions & Weight

Refractor Main Body

Control Box

Relay Box

Printer

16.06 x 4.21 x 10.91" / 7.1 lbs.

10.23 x 9.06 x 8.15″ / 4.6 lbs

7.44 x 8.7 x 2.87 / 3.1 lbs

3.98 x 3.39 x 4.76 / 1.3 bs

Refractor

Sphere


Cylinder

Axis

Pupillary Distance

Prism

Auxiliary Lenses

Refraction Distance for Near Vision

Visual Field

Vertex Distance Scale

Forehead Rest Adjustment

Horizontal Level Adjustment

Display

-29.00 to +26.75 D (0.12/0.25/0.50 to 3.00 D increments)
-19.00 to +16.50 D (cross cylinder test, prism test)

0 to ±8.75 D (0.25, 1.00, 2.00, 3.00 D increments)

0 to 180° (1° / 5° / 15° increments)

Distance PD: 48 to 80 mm
Near PD (35 cm): 50 to 74 mm
Full convergence Distance PD: 54 to 80 mm

0.00 to 20.00Δ (0.1, 0.5, 2Δ increments)

Cross cylinder: ±0.25D, ±0.50D, ±0.25 D auto cross
Occluder: Available
Pinhole: 2.0 mm in diameter
Color filter: Right red, Left green
Polarizing filter: Right 135° / Left 45°, Right 45° / Left 135°
Fixed cross cylinder: ±0.50 D (fixed with the Axis set at 90º)
Spherical lens for retinoscope: 0D, +1.5D, +2.0 D (selectable by setting)
Maddox rod (red): Right horizontal, Left vertical
Dispersion prism (fixed): Right 6ΔBU, Left 10ΔBI
Dispersion prism for binocular balance: Right 3-10ΔBD, Left 3-10ΔBU
Dispersion prism for horizontal phoria: Right 3-10ΔBU, Left 3-10ΔBD
Dispersion prism for vertical phoria: Right 5-15ΔBI, Left 5-15ΔBI

350 to 700mm (can be changed in 50mm increments)

40° (VD = 12mm) 39° (VD = 13.75mm)

12, 13.75, 16, 18, 20 mm

125±2 mm

±2.5°

10.4-inch color LCD
