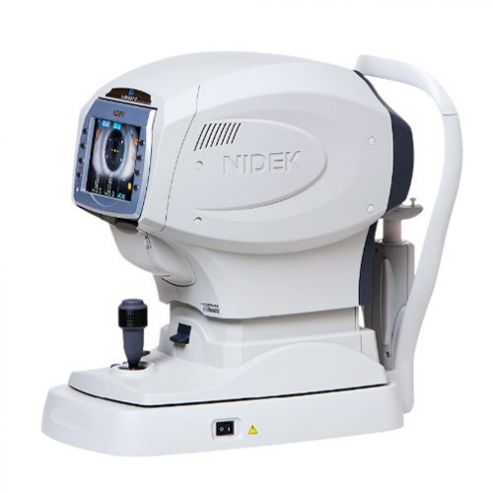

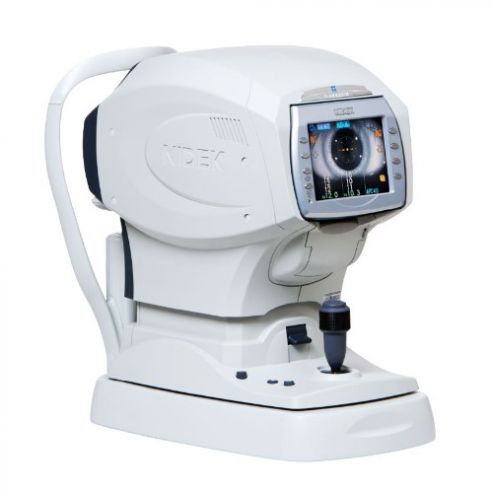

Marco Tonoref II ARK with Tonometry

Contact us for Price & Availability Request a Quote (888) 781-4458

The Marco Tonoref II ARK with Tonometry offers the same space and time saving features as well as the dependability of the original Tonoref, because it is 3 instruments in one, the only one of its kind. The Tonoref II presents several enhanced features such as a smaller footprint, to save even more space, and a new exterior design, but most importantly, the Tonoref II now uses SLD (Super Luminescent Diode) and a highly sensitive CCD device to provide Zonal Ring-Image Technology. This makes it possible to now accurately measure patients with cataracts, corneal opacities, IOLs, and post LASIK.


Multi-Tilt LCD: The clear 5-inch color LCD monitor can be tilted for easy operation. If the operator needs to stand to lift the patient’s eyelid, the monitor can still be viewed.

High Speed Printer: The printer provides fast loading and automatic cutting. Simply open the door, drop in the paper, and go. No spool or paper feed needed.

User Friendly: combines the measurement of refractive power, corneal curvature and intraocular pressure (IOP) providing fast, highly accurate, reliable measurements with significantly reduced measurement time.

Gentle Air: The Tonoref II has an advanced APC (Automatic Pressure Control) – high volume-low pressure puff-function which provides a softer puff of air for accurate IOP measurements with increased patient comfort.

Motorized Chinrest: Up/Down buttons are used to adjust the motorized chinrest to the correct height for patient measurement.

Specifications Financing
Sphere –30.00D to +25.00D (V.D. =12mm), (0.01/0.12/0.25D increments)
Cylinder 0D to ±12D (0.01/0.12/0.25D increments)
Axis 0° to 180° (1°/5° increments)
Minimum Measurable Pupil Diameter 2mm
Chart Scenery Chart (balloon target)
Radius Curvature 5.00 to 13.00mm (0.01mm increments)
Corneal Refractive Power 25.96D to 67.50D (n=1.3375), (0.01/0.12/0.25D increments)
Auto Track & Automatic Data Capture X-Y-Z direction, Automatic Data Capture
PD Measurable Range 30.00mm to 85.00mm (indication increments: 1mm)
Corneal Size (CS) 8.1mm–14.6mm (indication increments: 0.1mm)
Pupil Size (PS) 0.8mm–12.1mm (indication increments: 0.1mm)
Non-Contact Tonometer -
Measurement Range 1mm Hg to 60mm Hg
Measurement Range Settings APC40, APC60 (APC=Automatic Puff Control) 40, 60 Standard PC p uff does not automatically adjust
Working Distance 11.0mm
Eye Fixation Inner Fixation Light
Auto Track & Automatic Data Capture X-Y-Z direction, Automatic Data Capture
