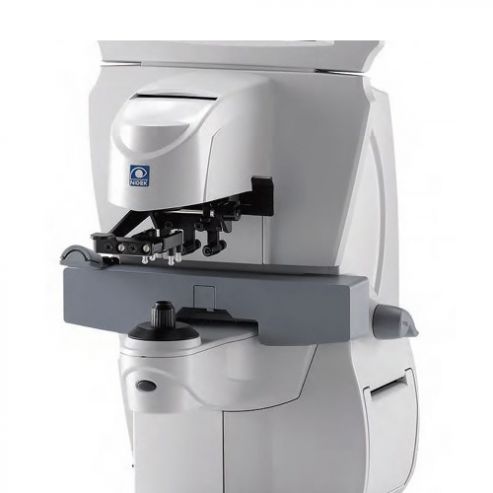

Marco LM-1800 Auto Lensmeter
The Marco Automated Lensmeter LM-1800 Series represents the latest lensometry technology in lens detection and measurement, providing simple and rapid operation. Automatic detection of lens type, the speed of measurement, and rich feature list with customizable operations create unparalleled functionality and versatility, making it the most advanced automated lensmeter series in the market today.
DESCRIPTION:
Full Color Graphic Display: Display offers clear and easy recognition of various values, from single-vision lens to progressive lens. Superior LCD brightness and horizontal/vertical viewing angle.
High Speed Printer: The high-speed printer is fast and has easy-to-read printouts as well as an auto-cutter. Replacing a new roll of paper is easy and takes only a few seconds.

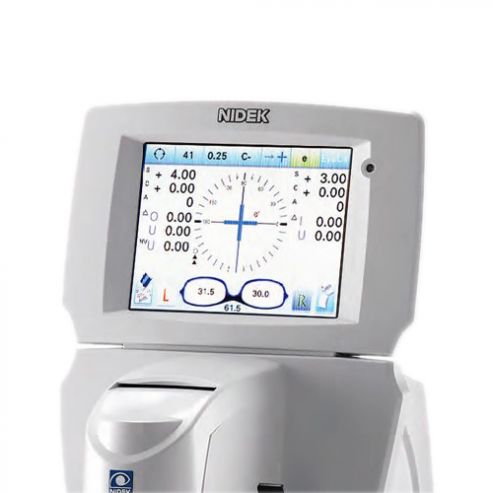

5.7" Tilt Touchscreen: 5.7″ tilt LCD monitor with enhanced viewing angle and touch capability.
Hartmann/Shack Sensor: Advanced simultaneous measurement of 108 points within the nosepiece provides easier and faster measurements with greater accuracy and reliability.
Auto Lens Type Detection: Placing a lens on the nosepiece activates the auto lens detection mode, which determines if a lens is a single vision or progressive lens. The LM automatically adjusts to the appropriate measuring mode for the lens type.
UNIQUE FEATURES:
Hartmann-Shack Wavefront Technology, Automatic Lens Detection, Enlarged Color Graphic LCD Screen, Self-inking Lens Marking Pens, UV Transmittance, Green Measurement Light, Built-in Eye Care IC Card Reader, Wide Prism Measurement Range, Printer w/Automatic Cutter, Net Vertical Prism, PD Measurement, Ethernet Interface.
| Sphere (Spectacle lenses) | -25 to +25 D |
|---|---|
| Sphere (Contact lenses) | -25 to +25 D (BC=6.0 to 9.0), (0.01 / 0.06 / 0.12 / 0.25 D increments) |
| Cylinder | 0 to ±10 D (-, MIX, +), (0.01 / 0.06 / 0.12 / 0.25 D increments) |
| Axis | 0 to 180º (1º increments) |
| ADD | 0 to +10 D (Add, Ad2) |
| Prism | 0 to 20∆, (0.01 / 0.06 / 0.12 / 0.25∆ increments) |
| Prism Mode | ∆, , Base In / Out, Base Up / Down |
| PD Measurement | (LM-1800PD) 20.0 to 49.5 mm (monocular), Single vision PD, Progressive lens far vision PD |
| UV Transmittance | 0 to 100% (1 or 5% increments) Measurable lens diameter |
| Spectacle Lenses | 20 to 120mm |
| Contact Lenses | Larger than the inner diameter of the nosepiece (ø5 mm) |
| Measurable Transmittance | 10% and over (20% and over for ±15 to ±20 D) |
| Compensation Function For High Index Lenses | The abbe number is changeable in the range of 20 to 60 |
| Marking System | Ink cartridge type • Wavelength / Points measured 535 nm (green) / 108 within nosepiece |
| Printer | Thermal line printer with auto cutter (paper width: 58 mm) |
| Power Supply | AC 100 to 240 V, 50 / 60 Hz |
