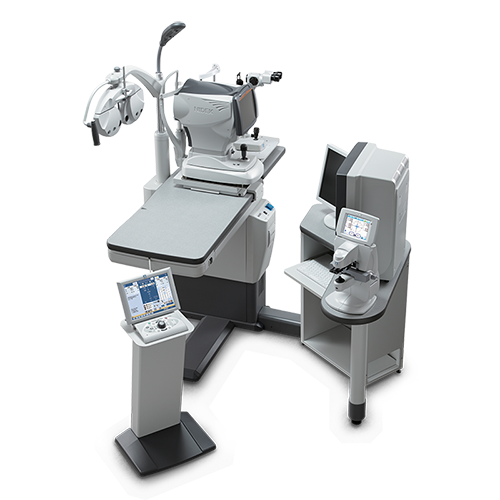

Marco EPIC-6100 Refraction Workstation

Contact us for Price & Availability Request a Quote (888) 781-4458

All components of the refraction process are combined for peak efficiency in the EPIC-6100. There are Multiple ARK/NCT/OPD & LM configuration options available for the ultimate customization. An optional second table adds an additional device, including the Ultra M series Slit Lamps with ION Imaging. The tilt screen and angled refractor head allows realistic near testing. OPD Wavefront maps can be displayed for more effective diagnostics and patient education. The EPIC-6100 boasts a fully connected exam capability in a 5’ x 6’ footprint.

The EPIC-6100 is a complete performance package. All the components of the refraction process are together in one space. Customizable optional accessories provide versatility.

As part of the Advancing Eyecare Alliance and technology partners program, your EMS representative will work directly with Marco Ophthalmic to get you the best options available in the market.

Designed and Manufactured by NIDEK · Represented by Marco

Features Specifications Financing

Complete Performance Package
The EPIC-6100 is a complete performance package. All the components of the refraction process are together in one space. Customizable optional accessories provide versatility.

Build Your Dream Practice
There are Multiple ARK/NCT/OPD and LM configuration options available for the ultimate customization. An optional second table adds an additional device, including the Ultra M series Slit Lamps with ION Imaging.

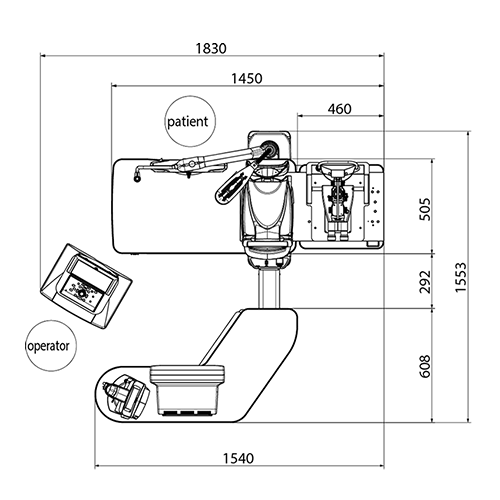

EPIC Refractions In Half The Space
The EPIC-6100 boasts a fully connected exam capability in a 5’ x 6’ footprint.

Unparalleled Technology & Benefits

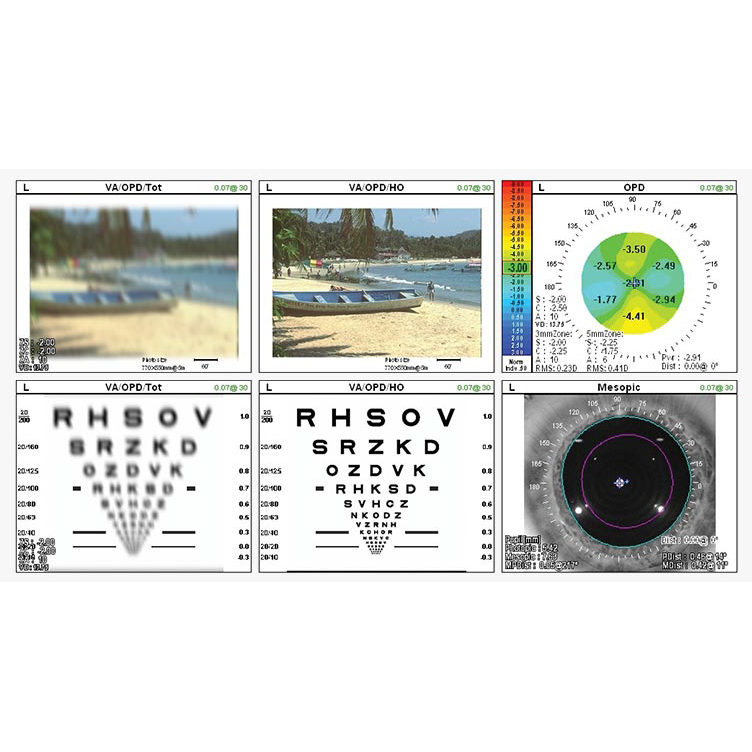

OPD Wavefront maps can be displayed for more effective diagnostics and patient education.

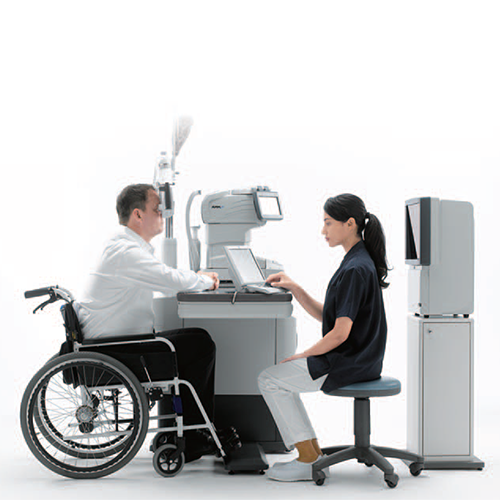

Safety
The main table provides excellent stability with silent, effortless vertical adjustment.

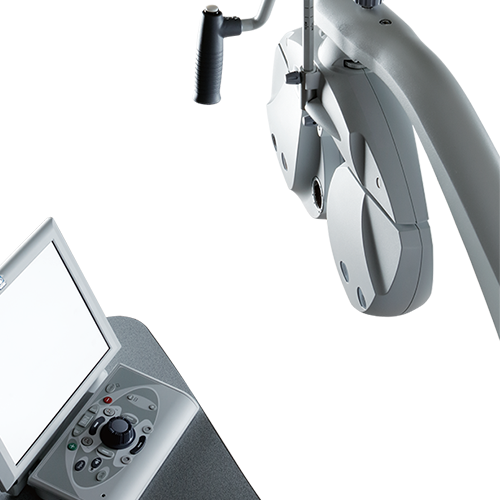

Tilting Function for Near Vision Check
The tilt screen and angled refractor head allows realistic near testing.

Dimensions & Weight
Main Body

Control Box

Relay Box

Printer

16.1 (W) x 4.2 (D) x 10.9 (H)” / 7.1 lbs.

10.2 (W) x 9.1 (D) x 8.1 (H)” / 4.6 lbs.

7.4 (W) x 8.7 (D) x 2.9 (H)” / 3.1 lbs.

4.0 (W) x 3.4 (D) x 4.8 (H)” / 1.3 lbs.

Epic-6100 Table
RT Arm

Up-and-down of RT Arm

Back-and-forth of RT Arm

Standard Accessories

Power Supply

Power Consumption

Electromagnetic lock, fully moveable up/down and back/forth

Stroke 310 mm

Stroke to patient side 230 mm

Power cord, Fuse, Power cord for chart, Refractor head hanging bracket

AC 100 to 120 V / 220 to 240 V, 50/60 Hz

600 VA (max, including RT and other optometry device)

General Information
Horizontal Level Adjustment

Display

Power Supply

Power Consumption

±2.5°

10.4-inch color LCD with touch screen

AC 100 to 240 V, 50/60 Hz

90 VA
