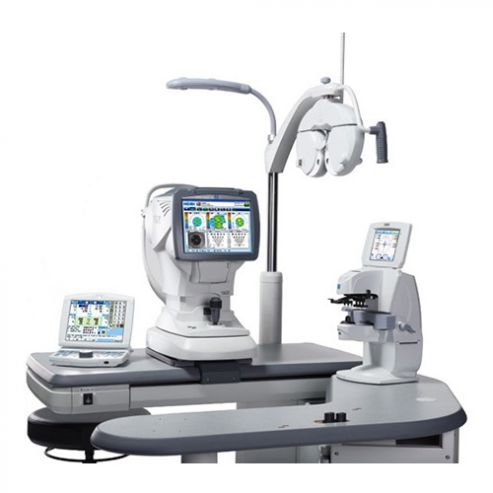

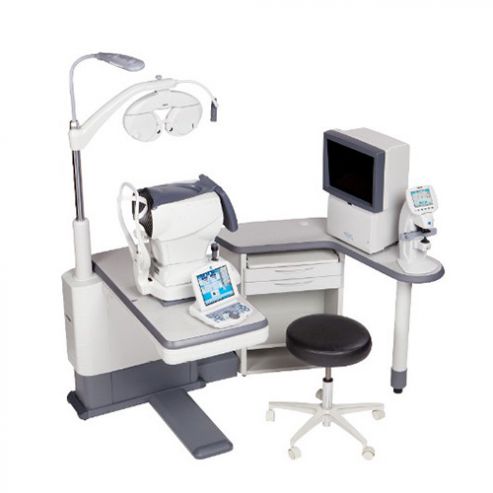

Marco EPIC-5100 Refraction Workstation

Contact us for Price & Availability Request a Quote (888) 781-4458

The EPIC refraction workstation decreases work-up times to less than 10 minutes and performs the refractions in 3-5 minutes. Now you can confidently delegate data gathering to your technicians and focus on data assessment, diagnosis and prescribing a final correction. Maximize office efficiency with a 4’x5’ refractive EPIC refraction workstation that takes up less space than most utility closets. Patients are tested at the TRS-5100 digital refractor, auto-lens meter, ARK/OPD-Scan III, and electronic chart without changing location.


Streamline Operations: The EPIC refraction workstation is today’s most innovative way to streamline operations, grow your business and build your dream practice. The EPIC decreases work-up times to less than 10 minutes, allowing the operator to perform the refraction in 3-5 minutes. Now you can confidently delegate data gathering to your technicians and focus on data assessment, diagnosis and prescribing a final correction.

EPIC Refractions In Half The Space: The EPIC uses half the space of a traditional lane, requiring an area of only five-by-six feet, allowing you to free up rooms for other procedures. The EPIC delivers the tools your technicians need to directly increase office productivity and patient flow.

Build Your Dream Practice: Diagnostic decisions are faster, yet more precise than ever. Patient throughput has increased by 50-75% and patient satisfaction has never been higher. And you have more time to spend as you like, for personal leisure or patient care. Meanwhile, your staff is more efficient and profits increase. From office productivity, to patient care, to the exam room, to the bottom line…the EPIC raises not only the quality of your practice, but also the quality of your life.

EMR Integration: The EPIC smoothly integrates with EMR, allowing you to efficiently transfer data from the examination to your patient database. This improves office productivity and assures a high level of confidence in managing important patient information, with the added benefit of elimination of transcription errors caused by manual data entry.

Specifications Financing
Measuring Range
Sphere -29.00 to +26.75D (0.12D / 0.25D / 1D / 2D / 3D steps)
Cylinder 0 to ±8.75 D (0.25D / 1D / 2D / 3D steps)
Axis 0 to 180° (1° / 5° / 15° steps)
PD 48 to 80mm (far vision)
50 to 74mm (near vision) (0.5 / 1mm steps)
54 to 80mm (Far PD at which both batteries can converge)
Rotary Prism 0 to 20D (0.1 / 0.5 / 2D increments) 0 – 20D (0.5D, 1D, 2D steps)
Auxillary Lenses Occluder, Polarizing Lenses, Pin Hole (1mm), 10 base-in prism, Red Maddox Horizontal (right eye), 6 base-up prism, Red Maddox Vertical (left eye), Cross mark for P.D., Red Lens (right eye), .50 fixed cross cylinder, Green Lens (left eye), Retinoscopic Lens, (+1.5D, +2.0D)
Refraction Distance for Near Vision 350 to 700mm (50mm increments)
Field of View 40° (VD = 12mm)
39° (VD = 13.75mm)
Forehead Rest Adjustment 15mm
Vertex Distance 12-20mm (12, 13.75, 16, 18, 20mm)
Horizontal Level Adjustment ±2.5°
Display 8.4-inch color LCD with touch screen
Power Supply 100 / 120 / 230 VAC
50 / 60Hz
Power Consumption 120 VA
Main Body 15.94 x 4.0 x 10.86″ / 12.8″ with bracket / 7.7 lbs.
Control Box 8.66 x 8.1 x 7.87″ / 4.2 lbs.
Relay Box 7.63 x 8.93 x 2.83″ / 8.8 lbs.
Printer 4.0 x 3.38 x 4.76″ / 0.66 lbs.
RT Arm Electromagnetic lock, fully moveable up/down and back/forth
Motorized Main Table Table top: 40.35 x 19.7 x 26.77 – 33.86″ (stroke 7.1″)
Side Table (Fixed) Table top: 42.52 x 28.46 x 29.9″
Overall 42.52 x 60.7 x 61.2 – 72.83″ / 352.7 lbs.
Power Supply 100 / 120 / 230 VAC ±10%, 50 / 60 Hz
Power Consumption 600 VA12.4″ (W) x 20.4″ (D) x 22.8″ (H) • 64 lbs
