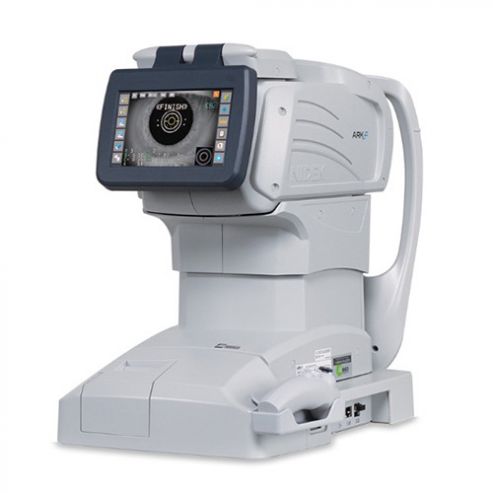

Marco ARK-F Autorefractor/Keratometer
The ARK-F is a fully automatic Autorefractor and Keratomer with auto start, auto chin rest adjust, auto detect, auto X-Y-Z align, auto capture, and auto eye transition. Gentle voice command guides staff and patients. There is a wide area of refraction of up to 6 mm and mire rings for keratometry which objectively measures accommodation and captures retro-illumination images. The large 7.0” LCD touch screen has a 360° swivel and tilt capabilities for versatile positioning in corners and against walls. Sharper & clearer images using Super Luminescent Diode (superior to LED). Options include a hand-held remote control for manual measurements and control from an iPad app that provides a 1-to-1 display of the ARK-F screen.
FEATURES:

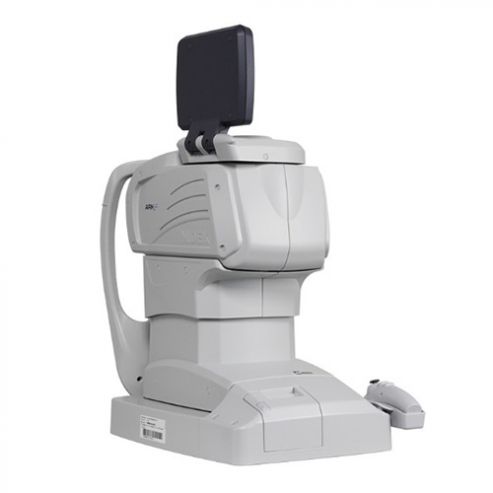

Tilt LCD Screen: Large 7.0” LCD touch screen with 360° swivel & tilt capabilities for versatile positioning in corners/against walls
Optional Accessories:
Optional hand-held remote control for manual measurements
Optional control from an iPad app that provides a 1-to-1 display of the ARK-F screen
High Speed Printer: The printer paper can be changed easily. The data sheet is cut by an auto cutter for quick and easy detachment.
Retro Illumination: Captures retro-illumination images
Super Luminescent Diode: Sharper and clearer images using Super Luminescent Diode (superior to LED)
Technical Details
Objective Spherical Refractive Error | -30.00 to +25.00 D (VD = 12 mm) (0.01/0.12/0.25 D increments) |
---|---|
Cylindrical Refractive Error | 0 to ±12.00 D (0.01/0.12/0.25 D increments) |
Cylinder Axis | 0 to 180° (1°/5° increments) |
Minimum Measurable Pupil Diameter | ø2 mm |
Corneal Curvature Radius | 5.00 to 13.00 mm (0.01 mm increments) |
Corneal Refractive Power | 25.96 to 67.50 D (n = 1.3375) (0.01/0.12/0.25 D increments) |
Corneal Cylindrical Power | 0 to ±12.00 D (0.01/0.12/0.25 D increments) |
Corneal Cylinder Axis | 0 to 180° (1°/5° increments) |
Pupillary Distance Measurement | 30 to 85 mm (1 mm increments) (Near point PD: 28 to 80 mm at WD = 40 cm) |
Corneal Size Measurement | 1.0 to 14.0 mm (0.1 mm increments) |
Pupil Size Measurement | 1.0 to 10.0 mm (0.1 mm increments) |

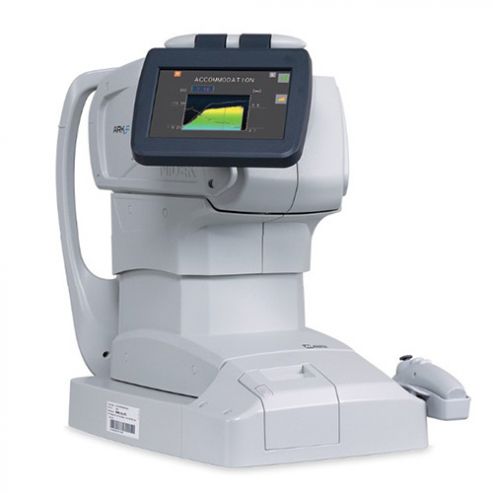

Accommodation Measurement | 0 to 10.00 D (0.01/0.12/0.25 D increments) |
Retro Illumination Image | Standard |
Vision Comparison | Available with scenery chart |
Auto Tracking | Fully automatic 3D tracking (X-Y-Z directions) |
