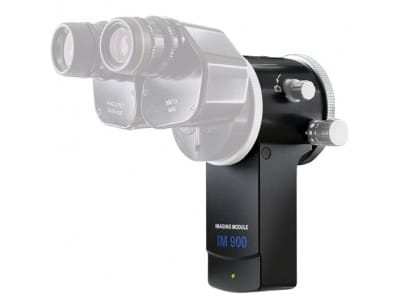

Haag-Streit IM 900 Slit Lamp Digital Imaging Module

Contact us for Price & Availability Request a Quote (888) 781-4458

The Haag-Streit IM 900 Digital Imaging Module provides ophthalmologists with high quality imaging and precise depth of field control within the slit lamp. The IM 900 features high-speed image capture and data transfer, along with a history trigger to allow you to rewind several seconds and choose the best image. To complete your slit lamp imaging system, combine the IM 900 with EyeCap™ or EyeSuite™ Imaging.

Features Specifications Financing
  • “Freeze” technology captures images immediately
  • True aperture depth of field control, unique to Haag-Streit imaging systems
  • History trigger allows you to pick your ideal image
  • Ergonomic management of camera settings with Easy Touch
  • Power Supply:
  •

  • Type: ICCNEXERGY, ELPAC POWER SYSTEMS
  • Model: MWA030018B-10A; HS no.: 1022106
  • Mains Voltage: 100 – 240 V
  • Current Consumption:8 A
  • Operating frequency: 50 – 60 Hz
  •

  • Camera Module CM03 Dimensions:
  •

  • Weight:6 kg (incl. packaging)
  • Dimensions L x W x H: 190 x 127 x 76 mm
  • Packaging L x W x H: 380 x 270 x 130 mm
  •

  • Camera:
  •

  • Camera beam: Beam path right (from the point of view of the doctor)
  • Interface: USB 3.0
  • Frame Rate: 30 fps (frames per second)
  • Power consumption: 5V/420 mA
  •

  • Minimum PC Requirements:
  •

  • Processor Type: Intel i5 (or better)
  • RAM: 4 GB (or more with a 64 bit operating system)
  • Hard disk: At least 500 GB (NTFS data system)
  • Graphics: Intel HD Graphics 4000 (or better)
  • Optical Drive: DVD-ROM
  • Monitor: 19” with at least 1280 x 800 pixel resolution
  • Interface: USB 3.0
  • Operating System: Windows Vista, SP2 (32 and 64 bit); Windows 7, SP1 (32 and 64 bit); Windows 8 / 8.1 (32 and 64 bit)
  • Sound: Ideally, turn computer sound on
