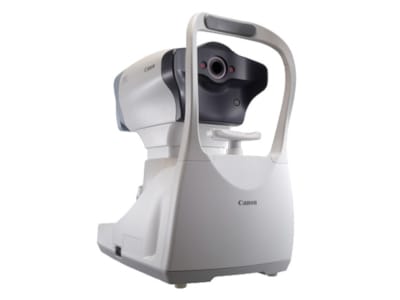

Canon RK-F2 Autorefractor/Keratometer

Contact us for Price & Availability Request a Quote (888) 781-4458

The RK-F2 automatically aligns, acquires the readings and then moves over to the opposite eye to perform the same function using the Full Auto mode. Alignment may also be performed using the Auto setting, where only one eye is automatically examined, or using the Manual setting. If the pupils have a diameter as small as 2 mm, readings may still be acquired using the small pupil mode. Up to 10 measurements of Refractometry and Keratometry may be stored for each eye.

Available:

  • New
Features Specifications Financing
  • Selectable Measurement Modes
    The three-dimensional tracking system of the RK-F2 features a wide range of movement, so that the examinee's pupil can be detected easily. When in Full Auto mode, the unit is a one touch operation for auto-refraction and curvature measurement in both eyes. Just press the start button and the ref-keratometer automatically aligns and measures both eyes. For added flexibility, Auto and Manual measurement modes are included.
  •

  • Small Pupil Size
    At 2 mm, the small pupil mode helps contribute to an efficient screening and is useful when a patient's pupils are difficult to dilate. The short reaching distance between the patient and operator allows closer personal interaction and easy ACCESS to the patient's eyes..
  •

  • Retro-Illumination
    Using infrared retro-illumination, the RK-F2 provides a detailed view of the eye which is helpful for identifying cataracts, vitreous opacity, scars, and other serious eye problems.
  •

  • Corneal Periphery Measurement
    The peripheral keratometry mode provides accurate measurements for examining oblique astigmatisms and helps determine the best fit for a CONTACT LENS. The RK-F2 can be used to make a series of measurements at a 30 degree angle from the eye's center along the attentive meridians.
  •

  • Wide Measurement Range
    The dioptric measurement RANGE of -30D to +22D allows examination of strong myopia or hyperopia. The astigmatic measurement range extends from 0 to 10D. The radius of curvature extends from 5 to 10 mm (33.75D to 67.5D) for keratometry.
  •

  • Compact and Lightweight
    The compact design of the RK-F2 is designed to be operated either sitting or standing, whichever is more comfortable for the operator. Weighing a little more than 33 pounds, the lightweight RK-F2 maximizes small work areas and comfortably fits on a Canon instrument table (sold separately) with a Canon Full Auto Tonometer or Canon Non-Mydriatic Retinal Camera (both sold separately). Keeping the Canon machines next to one another can help expedite the exam process.
  •

  • Multi-Functional Color LCD Monitor
    Aligning the patient's eye is easy using the motorized omni-directional joystick with a fine focus dial. All positioning may be performed with one hand allowing the other hand to work with the patient, if needed. The top of the joystick button has the start button which can immediately be pressed once the patient is properly positioned.
  •

  • Motorized Omni-Directional Joystick
    The peripheral keratometry mode provides accurate measurements for examining oblique astigmatisms and helps determine the best fit for a CONTACT LENS. The RK-F2 can be used to make a series of measurements at a 30 degree angle from the eye's center along the attentive meridians.
  •

  • Built-In PRINTER
    The front-loaded, high speed built-in PRINTER includes an auto cutter making it simple to remove the print-out. The ECO setting reduces the printing density and thereby conserves the paper necessary for printing by up to 50% as compared to printing without using the ECO setting. New paper rolls can easily be inserted through the feeder.

General

  • Type Full Auto Ref-Keratometer
  • Alignment Mode Full Auto/Auto/Manual
  • Auto Function Auto Shoot
  • Fixation Target Internal fixation/ Automatic fogging system
  • Corneal Pupil Diameter 2 to 16 mm
  • Retro-Illumination 2 images may be stored in memory
  • Data Memory Maximum 10 measurements of REF and KER for each eye
  • Interface RS-232C, USB Host, LAN
  • Display Tilting 5.7 inch VGA color TFT LCD screen
  • Operation Range Front/Back: 40 mm
  • Left/Right: 90 mm
  • Up/Down: 30 mm
  • Built-In Printer Thermal line printer with easy loading and auto cutter
  • Chin Rest Up/Down: 60 mm (Electrical)
  • Joystick Single-Axis (Electrical)


Refractometry

  • Sphere (SPH) -30 to +22 D (when Vertex distance of 12 mm)
  • Cylinder (CYL) 0 to ±10D (Increments: 0.12D and 0.25D)
  • Axis (AX) 1° to 180°
  • (Increments: 1 mm)
  • Pupil Distance (PD) 30 to 88 mm
  • Minimum Pupil Size 2 mm


Keratometry

  • Radius of Curvature 5 to 10 mm (Increments: 0.01 mm)
  • Corneal Power 33.75 to 67.5D (When cornea equivalent refractive index is 1.3375)
  • Corneal Astigmatism 0 to -15D
  • Axis 1° to 180° (Increments: 1 mm)
  • Corneal Periphery Measurement area: 30° (When radius of curvature is 8 mm)
  • Corneal Diameter 2 to 14 mm


Electrical and Environmental

  • Power Saving System Available
  • Power Supply 100-240V 50/60Hz
  • Power Consumption 80VA


Physical Characteristics

  • Dimensions (W x L x H) Approximately 10.2 x 19.3 x 18.5 inches
  • (260 x 490 x 470 mm)
  • Weight Approximately 33 pounds (15 kg)
