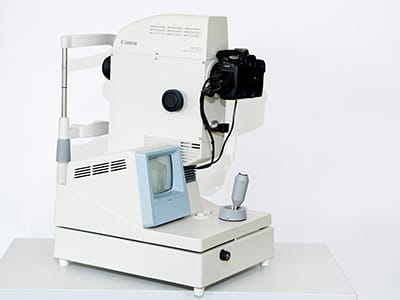

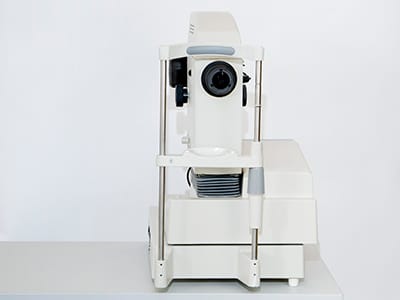

Canon CR-DGI Non-Mydriatic Fundus Camera

Contact us for Price & Availability Request a Quote (888) 781-4458

The Used Canon CR-DGI Non-Mydriatic Retinal Camera Features:

User-Friendly Internal Fixation Target
Easy Eye Fixation
Immediate Access to Taken Pictures
Only Small Amount of Light Necessary for Clear Images
Electronic Filing
Remote Storage
PC-Based Video Conference

Available:

  • Pre-Owned
Features Specifications Financing
  • Easy Alignment & Focusing
  •

  • Simple preparation for image capture
  • Fixation Target
  •

  • Eye fixation is simplified by user-friendly internal fixation target
  • Reduced Illumination
  •

  • Small amount of light needed to capture clear images
  • Type
  •

  • Non-mydriatic
  •


  • Angle of View
  •

  • 45 degrees
  •


  • Operation Distance
  •

  • 45mm from the front of objective lens
  •


  • Minimum Pupil Diameter
  •

  • 4mm
  •


  • Image Size
  •

  • 17mm on the sensor
  •


  • Attachable Digital Camera
  •

  • Canon EOS Digital
  •


  • Sensor Resolution
  •

  • 6.3 megapixels with Canon EOS 10D (Resolution depends on model of attached camera)
  •


  • Patient's Diopter Compensation Range
  •

  • Without compensation lens: -12 to +15D
  • With "-" compensation lens: -7 to -33D
  • With "+" compensation lens: +11 to +35D
  •


  • Working Distance Adjustment
  •

  • Outer eye display: split pupil alignment
  • Retinal display: working distance dots
  •


  • Fixation Target
  •

  • Dot matrix
  •


  • Light Source
  •

  • Observation: halogen lamp, 12V / 50W
  • Recording: strobe tube, max. 300W
  •


  • Built-in Monitor
  •

  • 5-inch monochrome TV monitor
  •


  • Data Output
  •

  • RS422
  •


  • Power Supply
  •

  • 110 - 120V AC, 60Hz
  • 220 - 240V AC, 50 / 60Hz
  •


  • Dimensions
  •

  • (W x L x H): 324 x 496 x 590mm (12.8 x 19.5 x 23.2in.)
  •


  • Weight
  •

  • Approx. 23kg (50.6lbs.)
