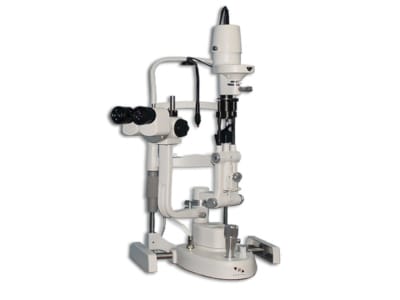

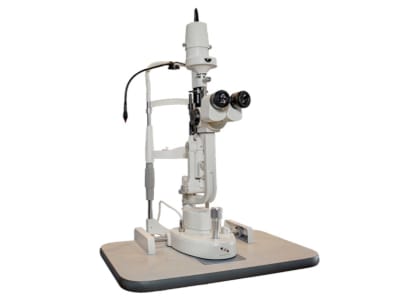

Burton SL-3MH Slit Lamp
With high-quality optics, the Burton SL-3MH Slit Lamp gives practitioners a durable product for complete control during examinations. Made of bronze, aluminum and superior optical crystal, this slit lamp is durable and has excellent performance.
- Illumination sits above the observation system, also known as a Haag-Streit Style Tower Illumination
- Three position revolving drum to change magnification using a Galilean Opitcal System
- Adjustable prism box to set interpupilary distance from 52mm to 78 mm.
- Large binocular field-of-view of Ø22mm, Ø13.5mm and Ø8.5mm with the 12.5x eyepiece with brightness controls
- Four built in illumination filters
- Continuous slit width adjustment from 0 mm to 14 mm.
- Integrated joystic with shot button to acquire sharp images.
- Type: Galilean Type Magnification Change Three positions revolving drum Eyepieces 12.5X Angle Between Eyepieces 13° Total Magnification Ratio 10X, 16X, 25X Pupilary Adjustment 52mm ~ 78mm Diopter Adjustment ± 6D Field of View 25X(Ø8.5mm), 16X(Ø13.5mm), 10X(Ø22mm)
- Slit Width Continuously variable from 0 to 14mm (at 14mm, slit becomes a circle) Slit Length Continuously variable from 1 to 14mm Aperture Diameters Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm Slit Angle 0° – 180° Slit Inclination 4 steps: 5°, 10°, 15°, 20° Filters Thermal Safety, UV, Red Free, Cobalt Blue Light Source Option of LED or Halogen Lamp Lamp 6V/20W Halogen Lamp
- Movement Base
- Longitudinal Movement 90mm Lateral Movement 100mm Fine Base Movement 15mm Vertical Movement 30mm
- Chin Rest
- Vertical Movement 80mm Fixation Target RED Led
- Input Voltage 220V/110V ~±10% Input Frequency 50Hz / 60Hz Power Consumption 30VA (max)
- Output Voltage
- Light 6V Fixation 3V
- Dimension and Weight
- Dimension 740mm x 450mm x 500mm Total Weight 25Kg Net Weight 24Kg
