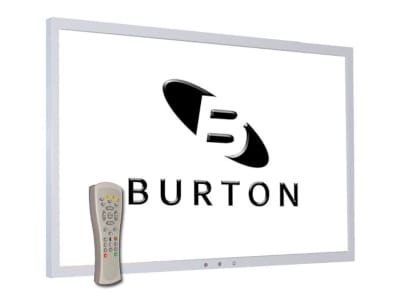

Burton ClearVue II Acutity Panel

Contact us for Price & Availability Request a Quote (888) 781-4458

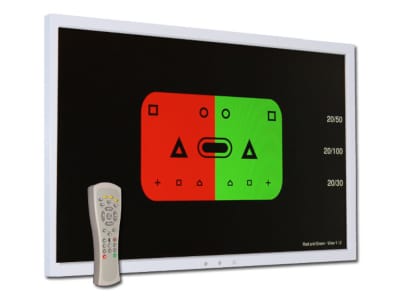

The Burton ClearVue II Acuity Panel is an all-in-one visual acuity tester with 22 inch LCD screen. In addition to a comprehensive selection of tests, you can easily upload custom practice information such as promotional events or educational information. Additionally, all ClearVue acuity panels come with free and easy software updates.

Available:

  • New
  • Pre-Owned
Features Specifications Financing

All-in-one, 22” LCD Screen, calibrated and certified luminance
Portable or wall mounted
Embedded Linux operating system
Red and Green calibration
Wide range of examination: 0.03-1.6
Adjustable distance: up to 8m or 26ft
Two preselected background luminance levels: dark room or normal room
All letters chart with contrast sensitivity function
Polarization 45 / 135 degree (optional)
Multi-user settings (up to 3 users)
4 programmable patient’s examination
Free and easy software updates

Charts include:
From 0.3/10 to 16/10, 13 contrast LogSC levels, random, single letter, single line, multi-line, red and green.
Contrast Sensitivity Test
144 calibrated stimuli, 3 random inclinations, 8 contrast sensitivity levels, 6 spacial frequency levels (from 0.75 to 18 cycle/degree), graph report.
Ishihara Tables (25 brightness calibrated tables)
Stereo Test (15 tables)
To use with red-green glasses

Tests Include:
Contrast Sensitivity Test with innovative Fast 2-1 psycho-physic procedure
Standard ETDRS tables (Refractions, Right, Left)
Snellen
Sloan
Numbers
Allen pre-school
Tumbling E
Landolt’s ring
HOTV
Ishihara tables
Phoria (Vertical, Horizontal)
Coincidence test (Vertical, Horizontal)
Worth’s rhombi
Lancaster’s Tables
Dicromatic balance
Amsler’s grid
Children’s images
Astigmatism point
Grating (Sinusoidal, Square bars)
Stereo tests
Schober test with horizontal and vertical deviation
Near vision tests
Hebrew letters
China Ideograms

  • LCD 22” contrast calibrated system for a precise sensitivity measurement
  • Wide Range of Examination: 0.03-1.6
  • Adjustable Distance: up to 8 m or 26 ft.
  • Two preselected background luminance levels: dark room or normal room
  • Visual units: 12 visual acuity scale(decimal, log, LogMar, 20ft, 10ft, 6m, 3m,…)
  • Just 3 remote control key to run all test
  • Programmable display sequences
  • Contrast sensitivity “Sequential” procedure and “Fast 2.1” psycho-physic procedure
  • Single letter , Horizontal line, Descending lines
  • Unlimited number of charts, full optotype randomization
  • Video player with child’s entertainment and stereo audio
  • Stylish Design
  • Silent
  • Dimension (WxHxD): 52.5 x 36.5 x 6.5 [cm]
  • Weight 4kg
  • Adjustable auto power off
  • Power Supply: 110-220 VAC, 50-60Hz
  • IR remote battery type: AAA LR6
  • Standard wall mounting Vesa 100×100 or table version
  • Classification: Medical Device Class 1
  • Compliance with: international standard UNI EN ISO 15004, ISO 10938, ISO8596
